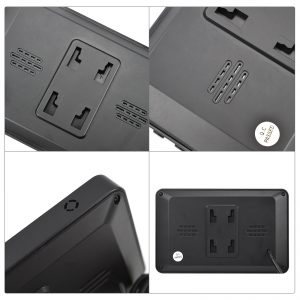

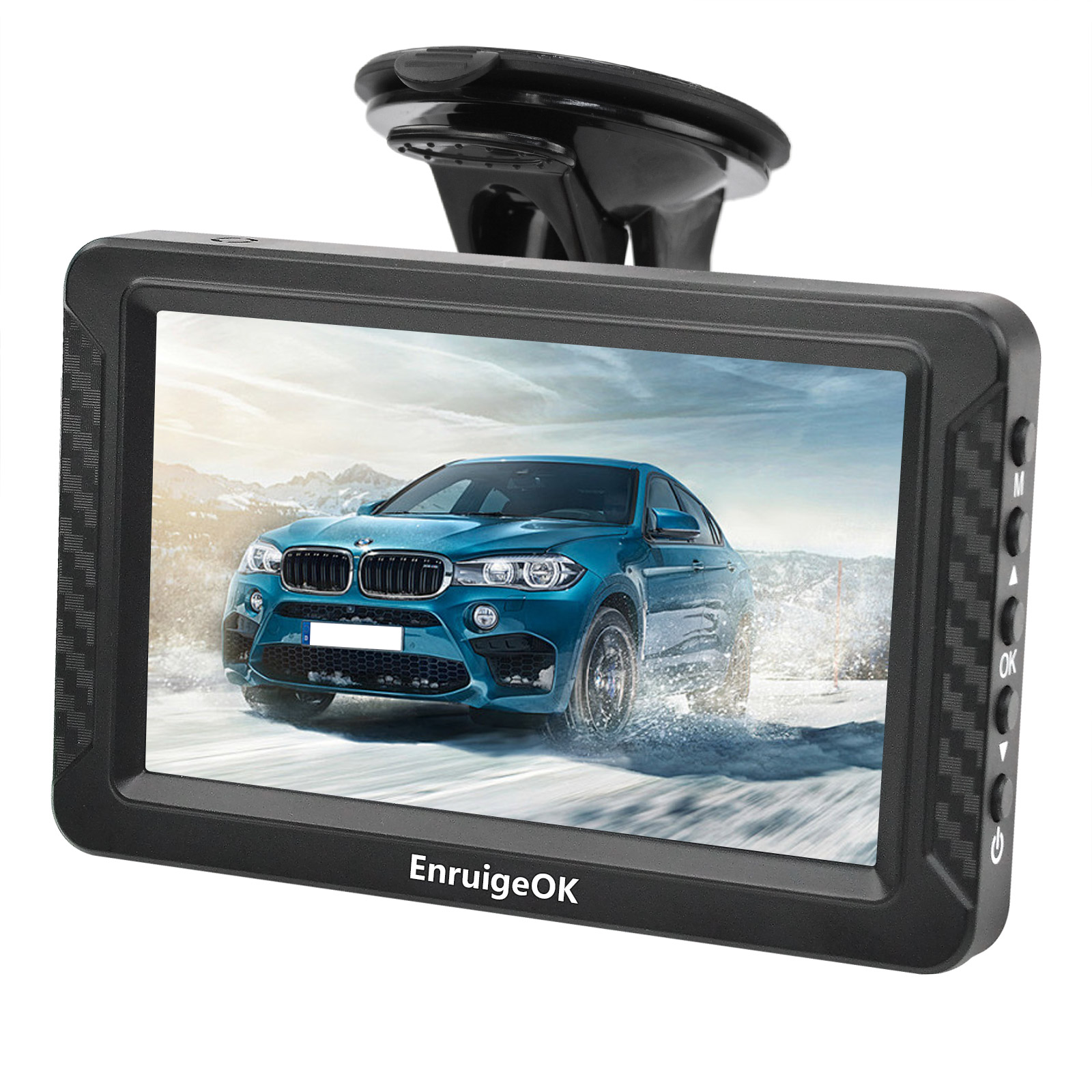

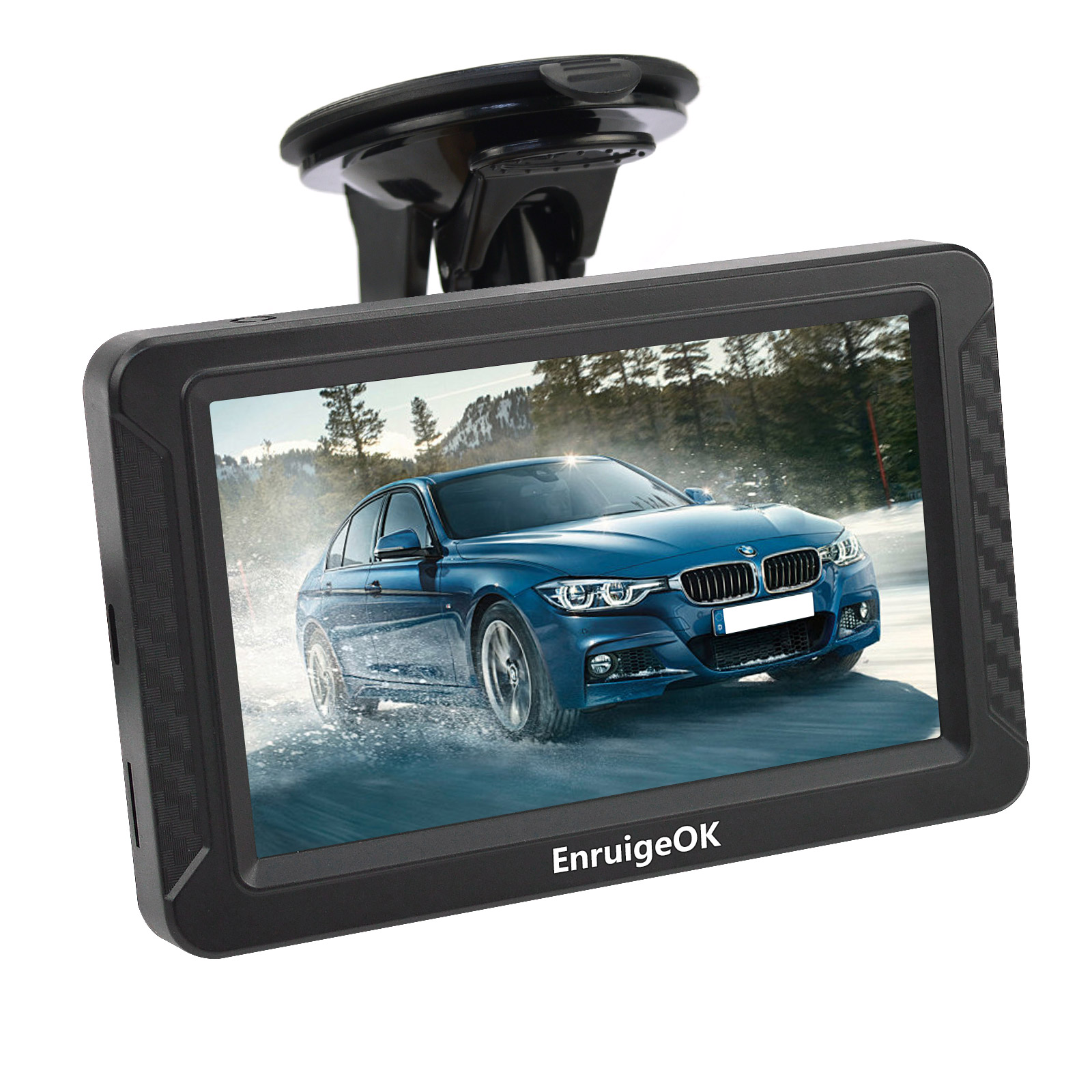

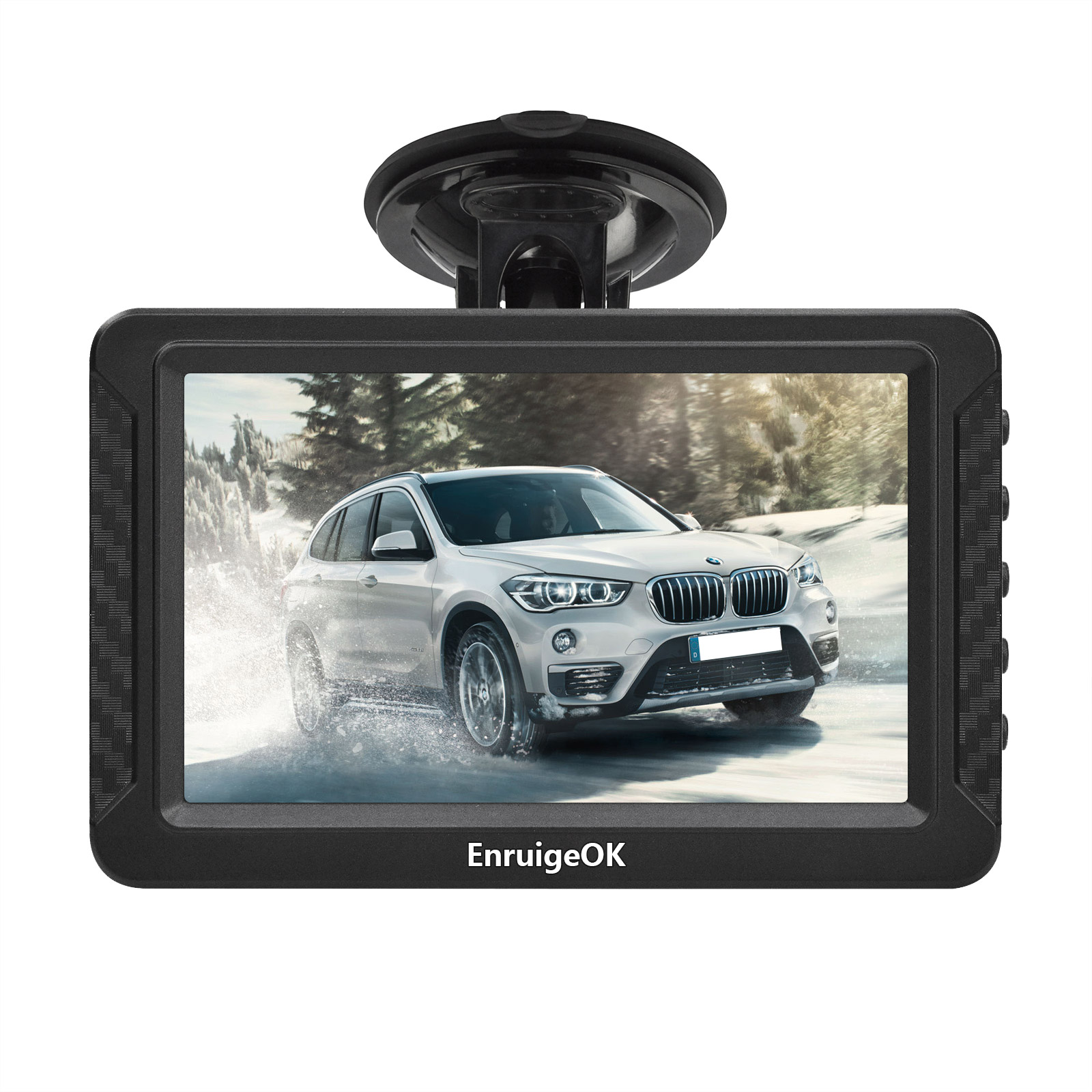

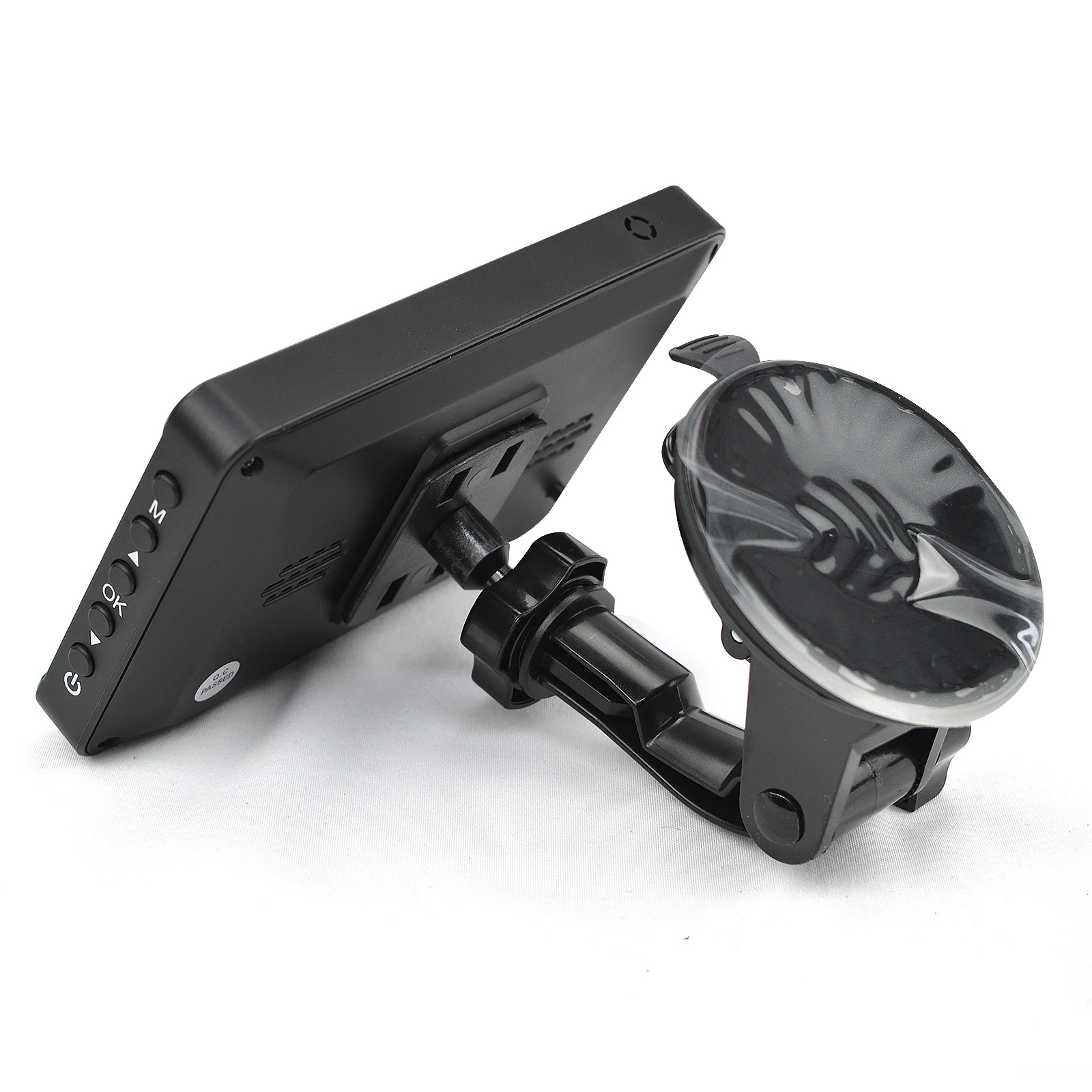

Monitor Specifications:
Screen size: 5 inch IPS display
Display format: 4: 3
Video: 1-channel video input
Resolution: 800(H) x 480(V) IPS
Power supply: DC 12V
Rear view in priority
Blue screen on no signal
Video system: NTSC / PAL auto switch
Current consumption: <4W
Operation temperature: -20℃ ~ 60℃
Storage temperature: -20℃ ~ 60℃
Note: The screen will bright only when connected to the signal source

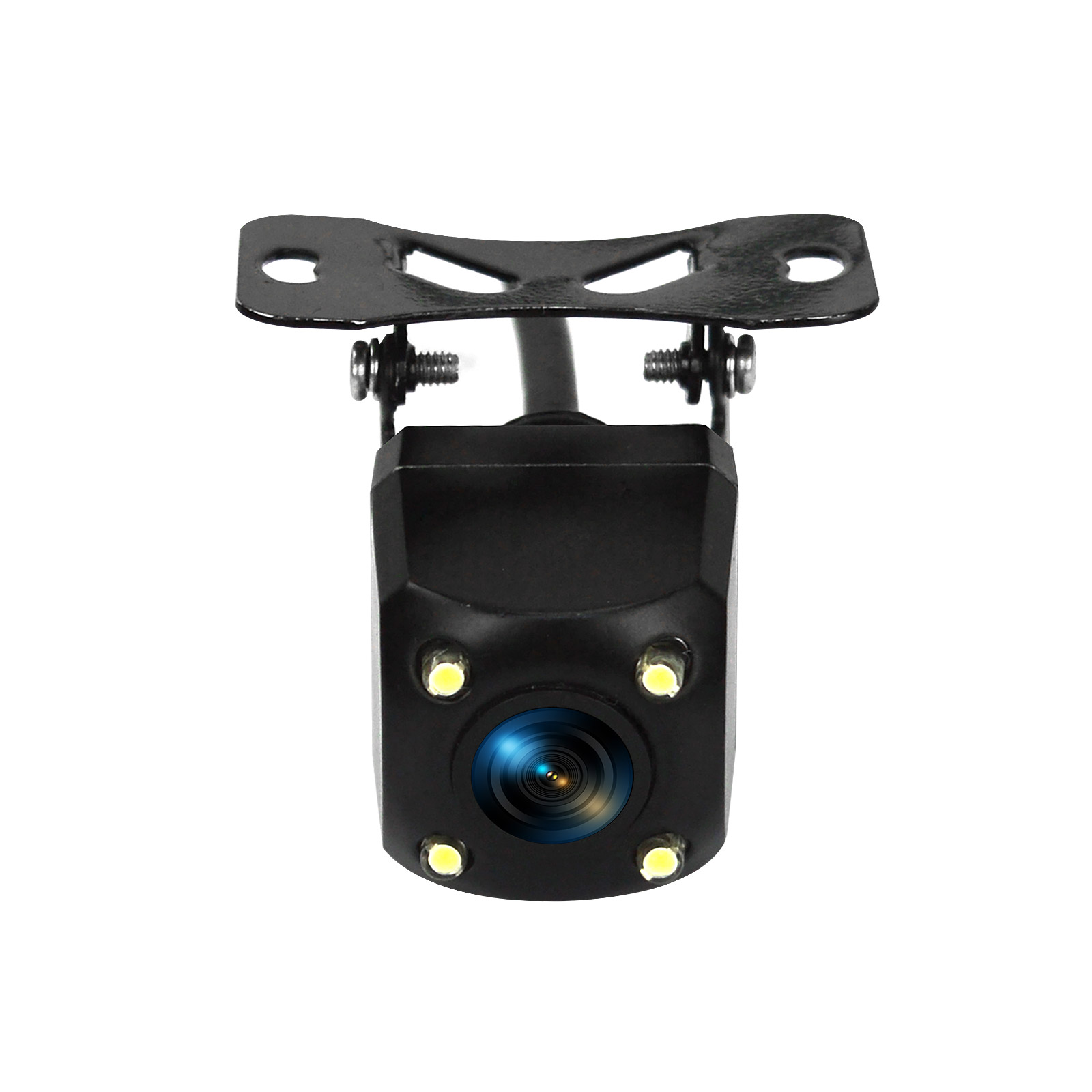

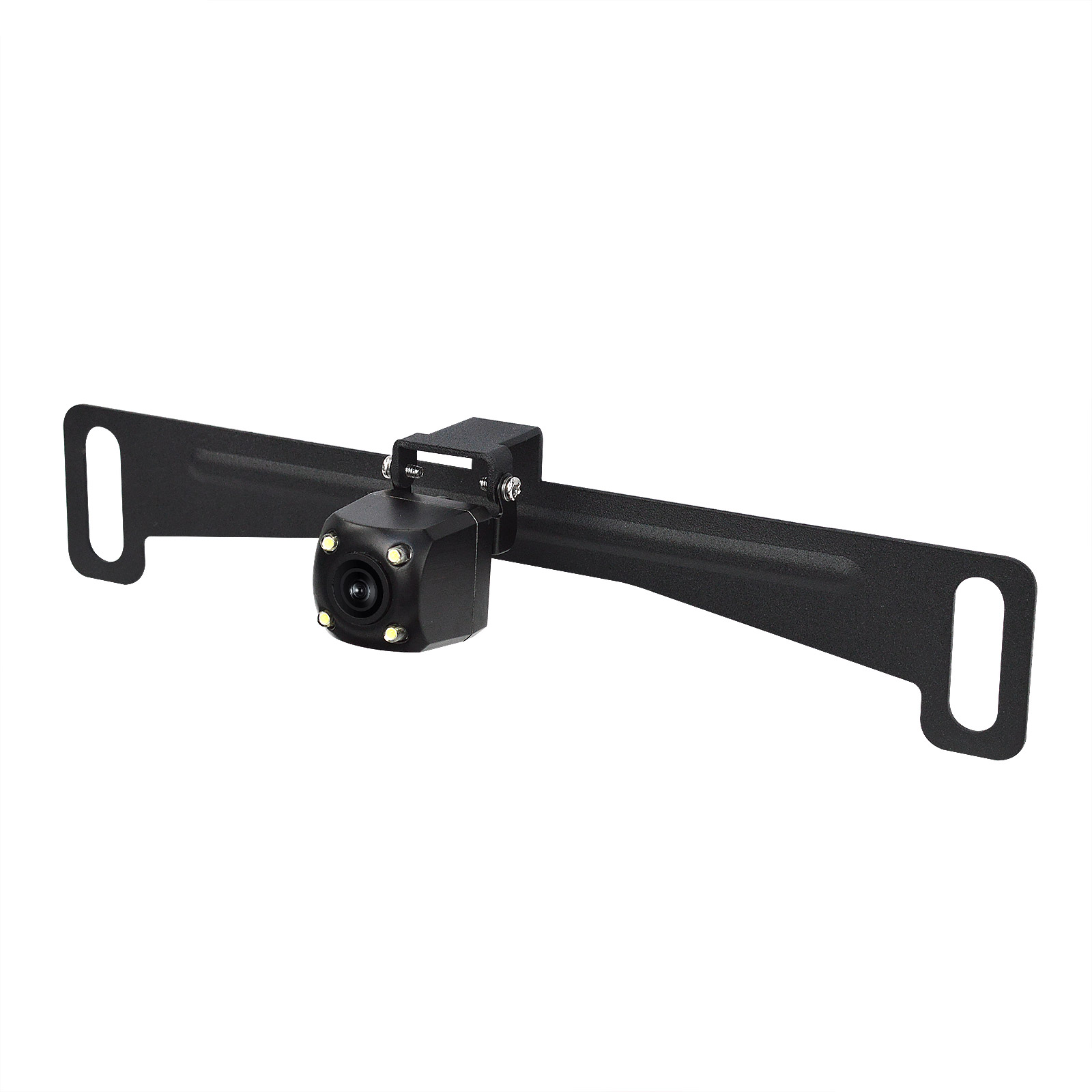

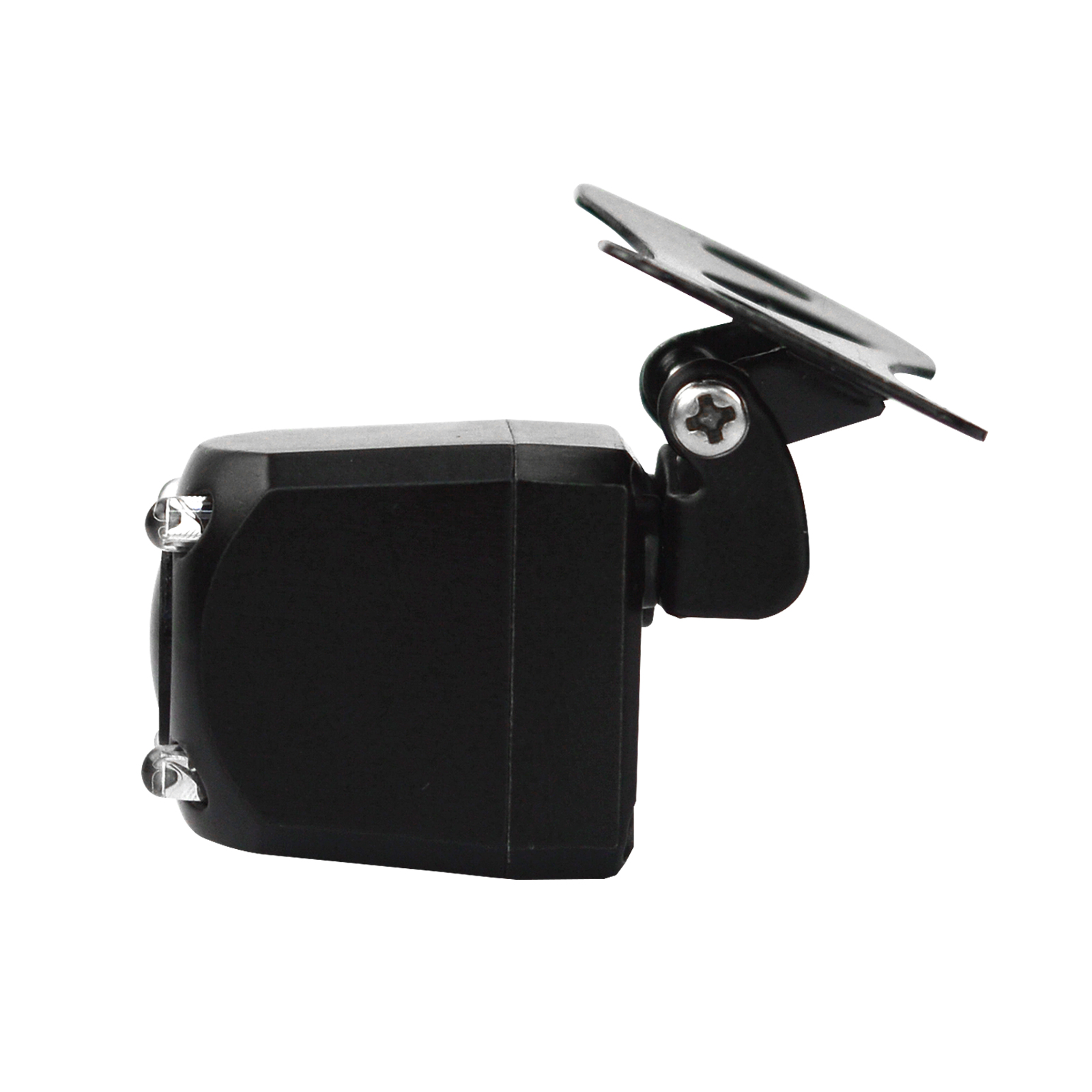

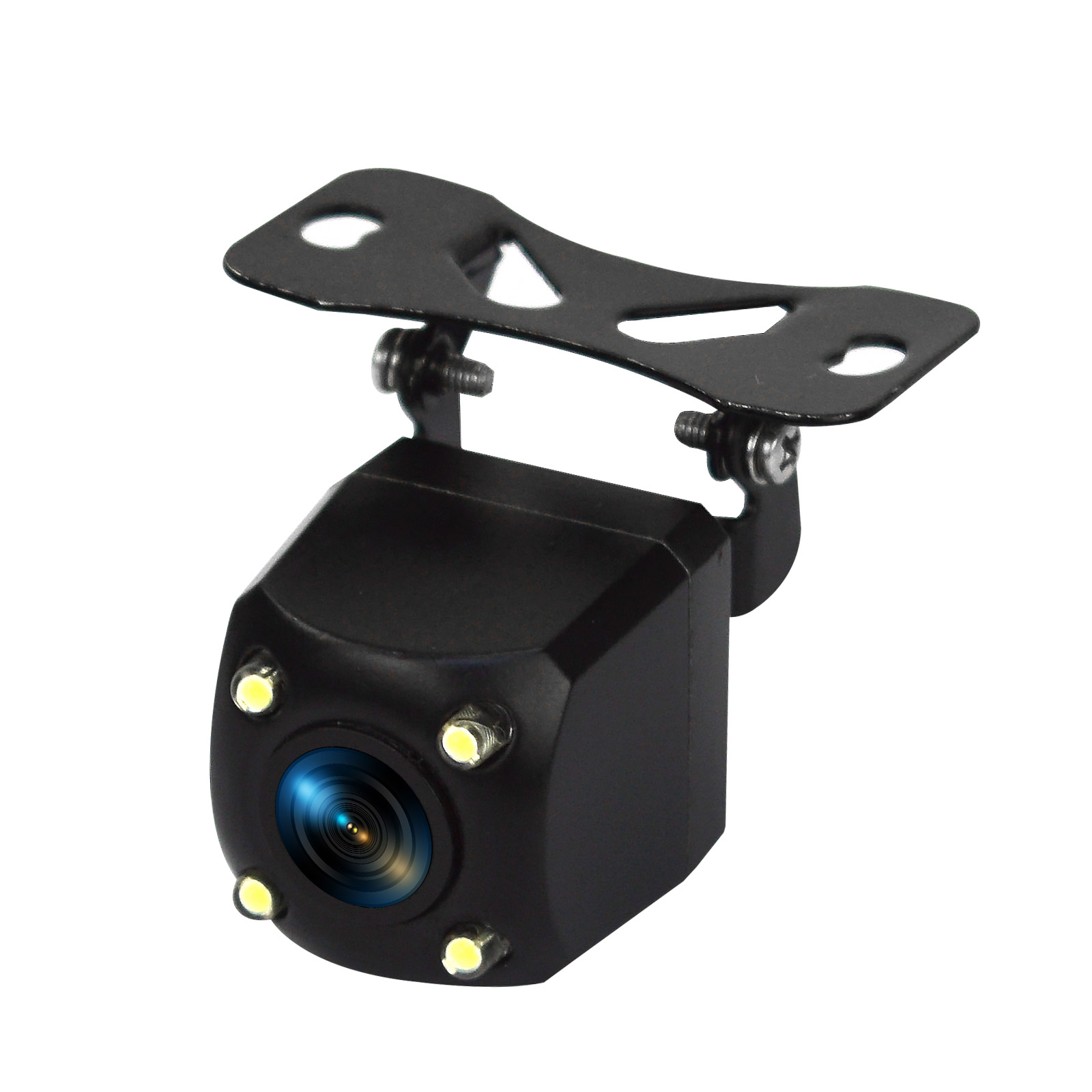

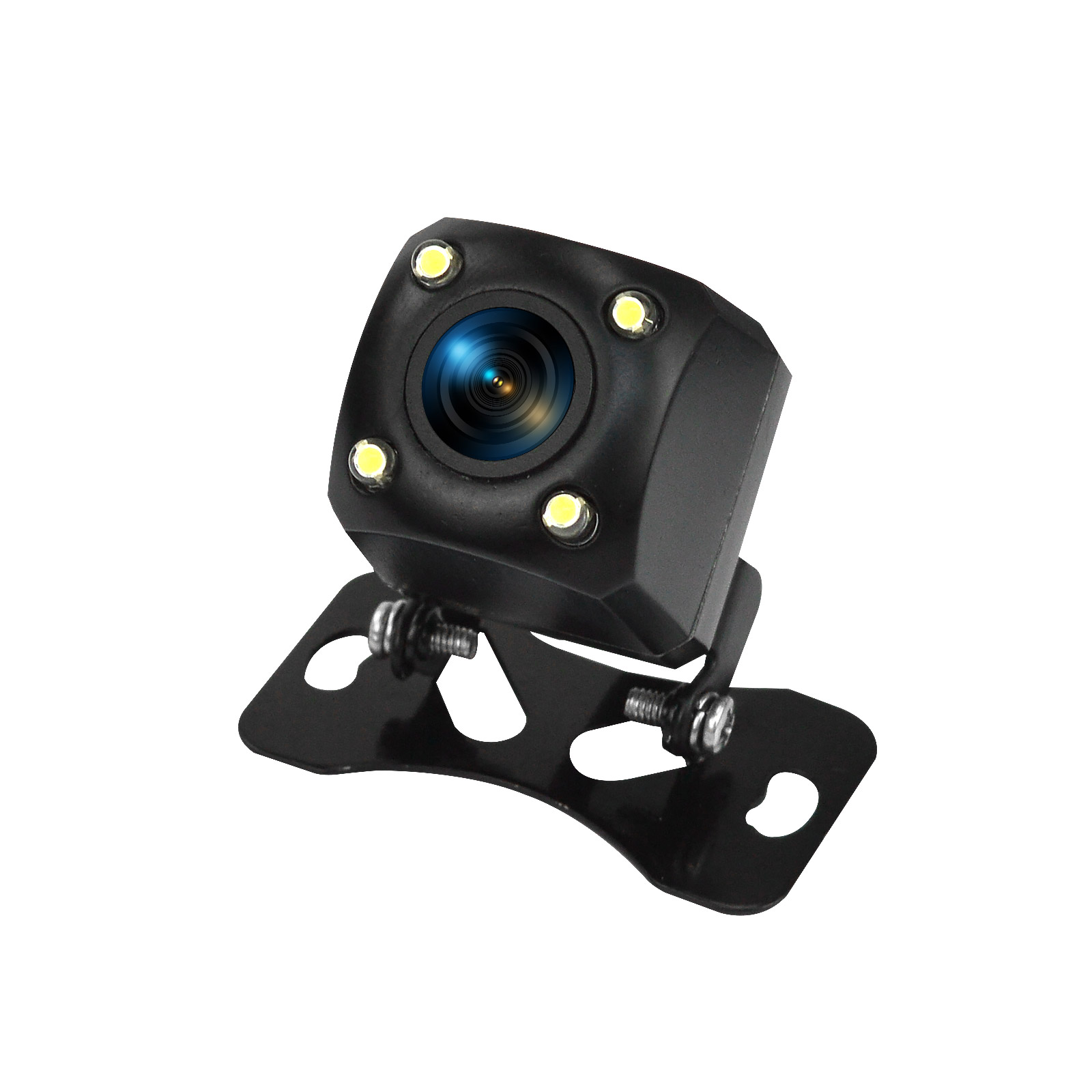

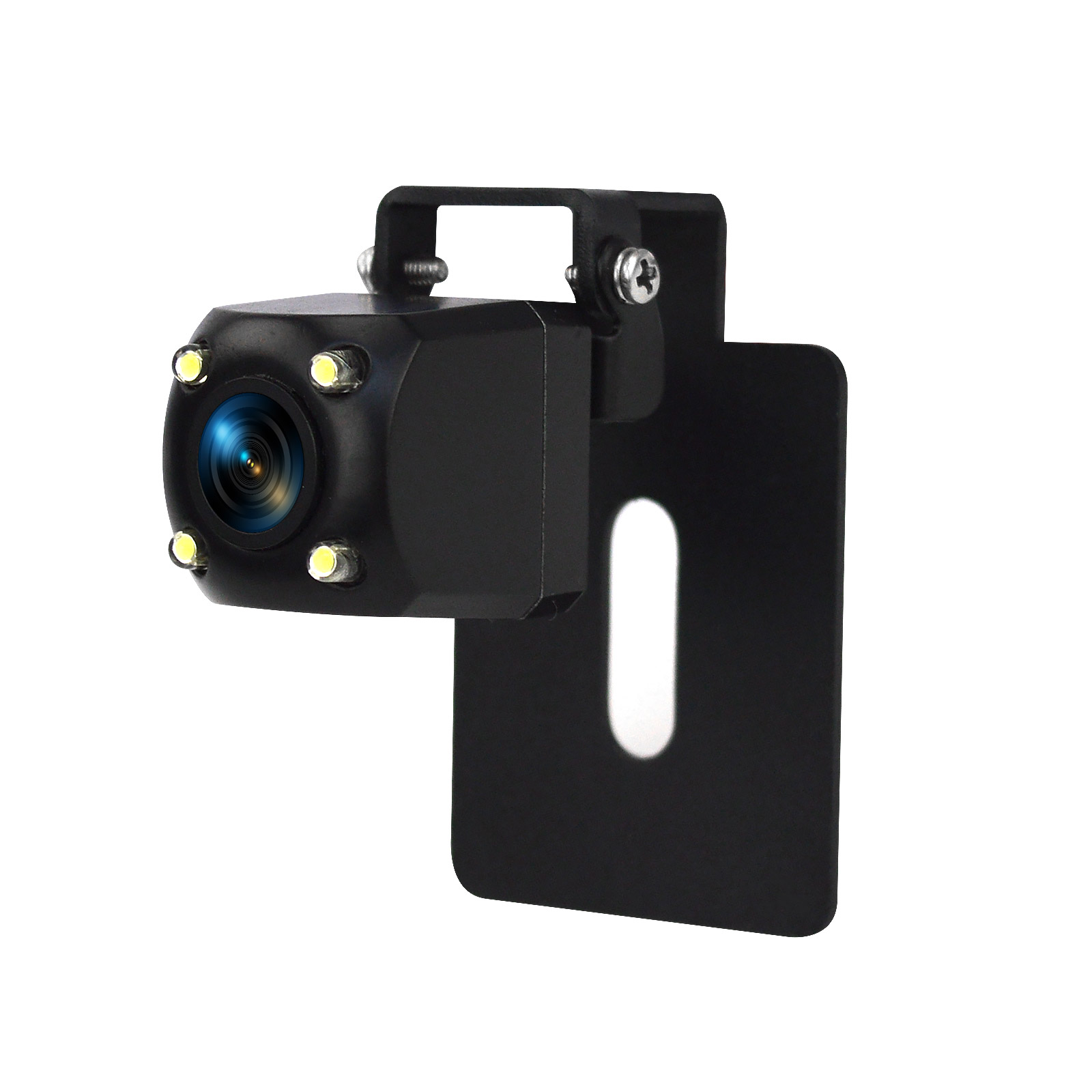

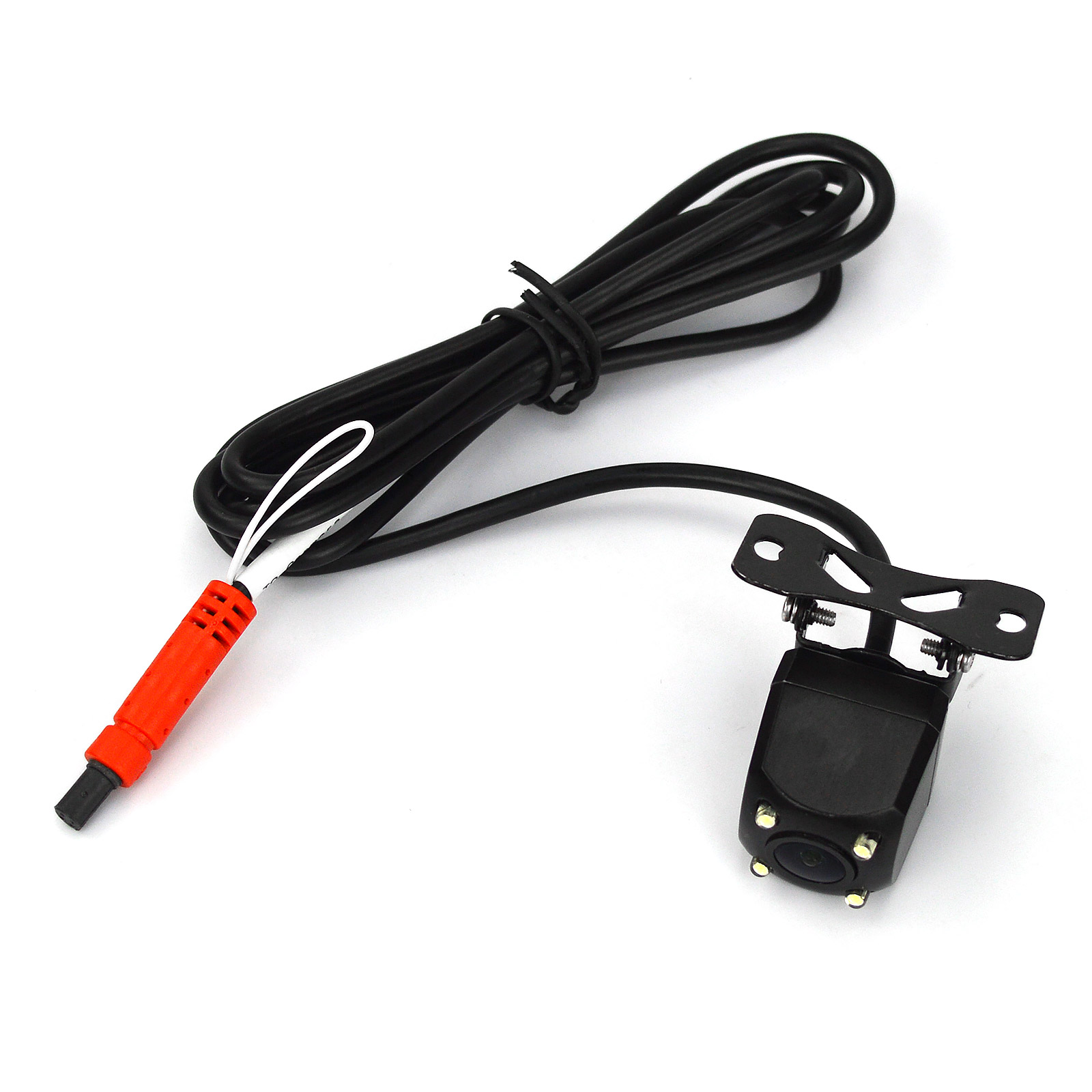

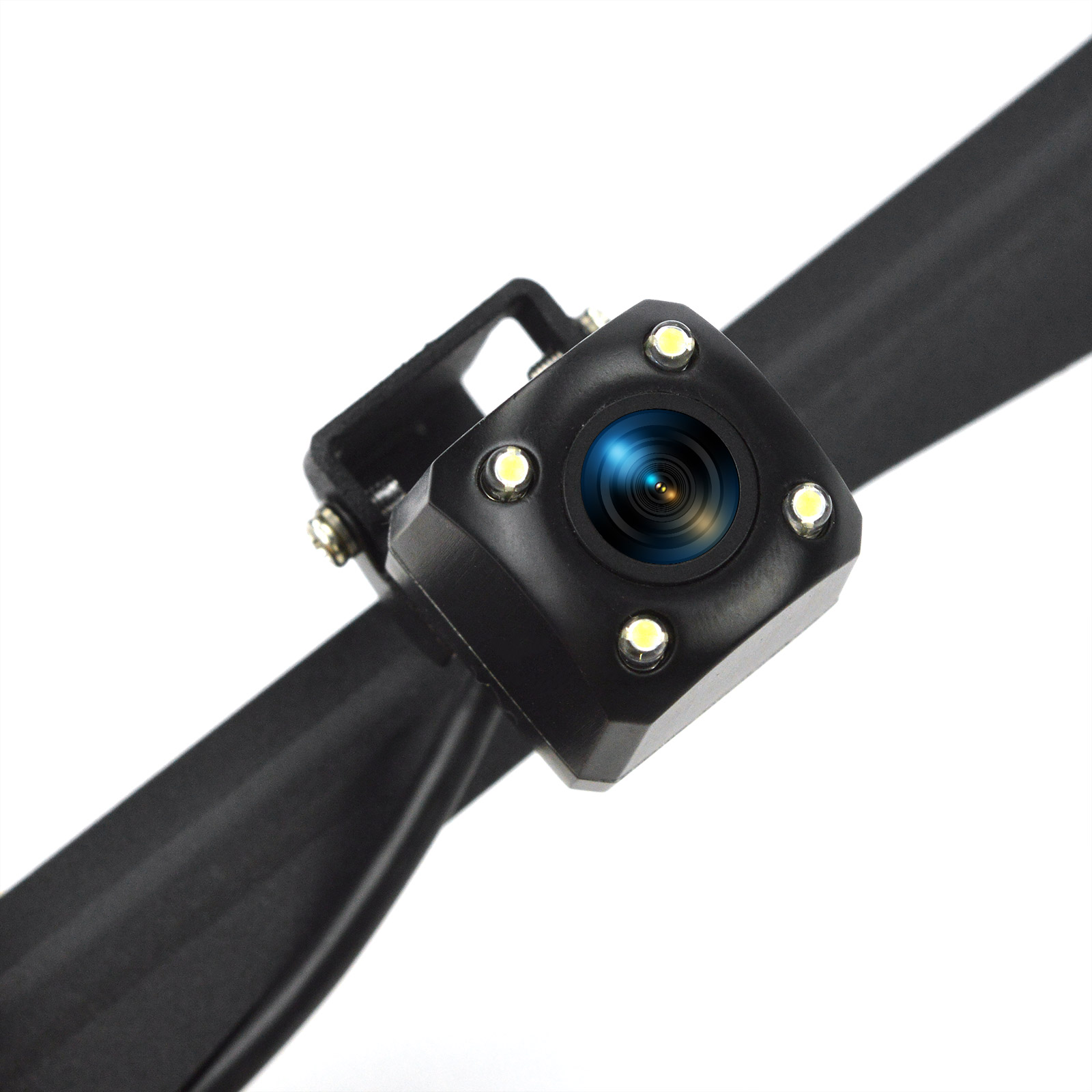

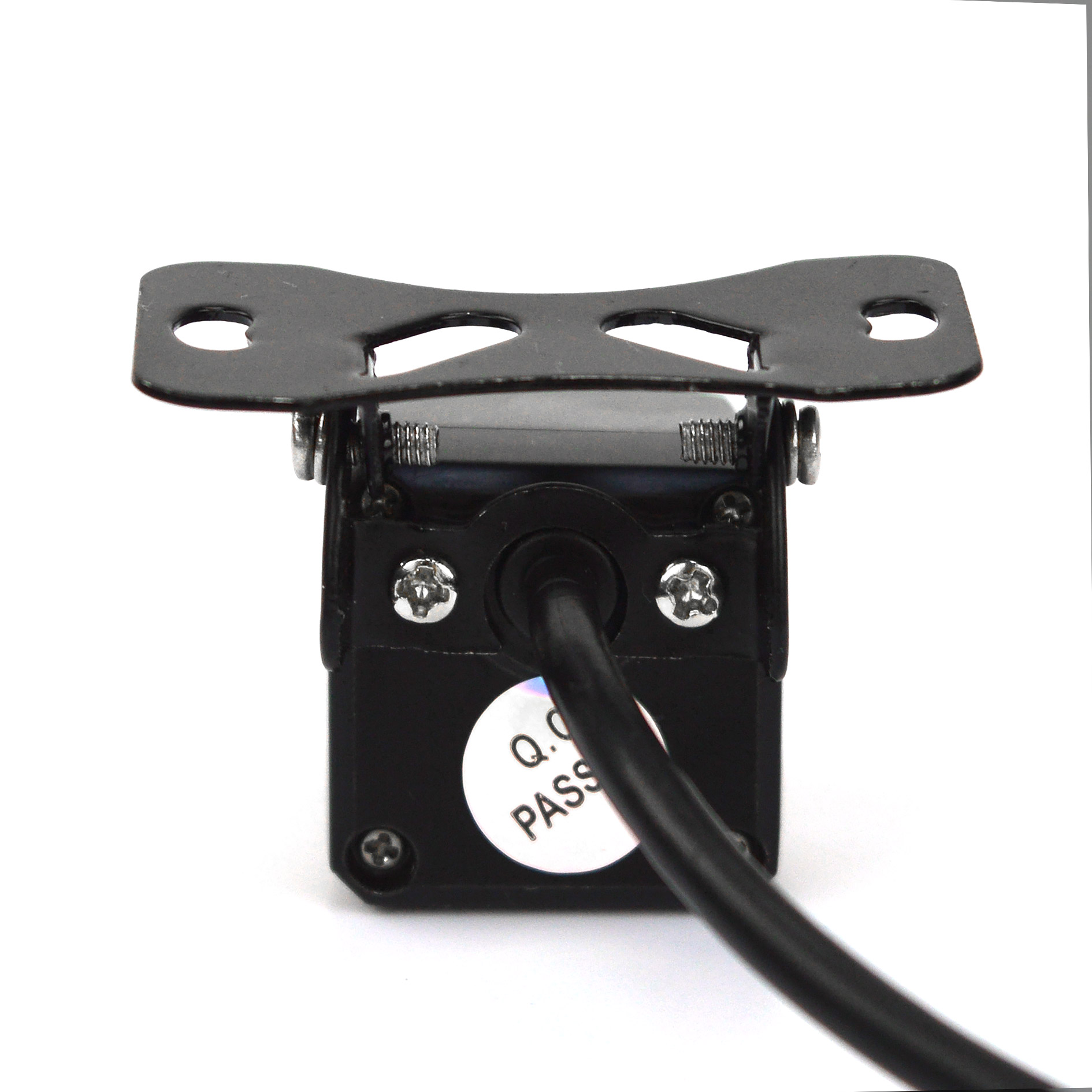

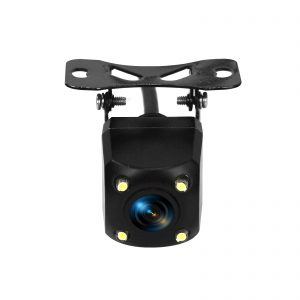

Camera Specifications:
Image sensor: 1/3″ CMOS
TV system: PAL/NTSC
Effective pixel: 1920H*1080V
Resolution: AHD 1080P
Waterproof rating: IP68
Lens Angel: Imaging angle 120°, horizontal angle 100°
Horizontal sync frequency: 15.625KHZ
Vertical sync frequency: NTSC 60HZ
Scanning system: 2:1 interface
Sync system: Internal
ACG: Auto
BLC: Auto
S/N Ratio: More than 48dB
Current consumption: no more than 150mA
Minimum illumination: 0.1 – 0.5Lux / F = 1.2
Power supply: DC12V
Operating temperature：-20°~70°C

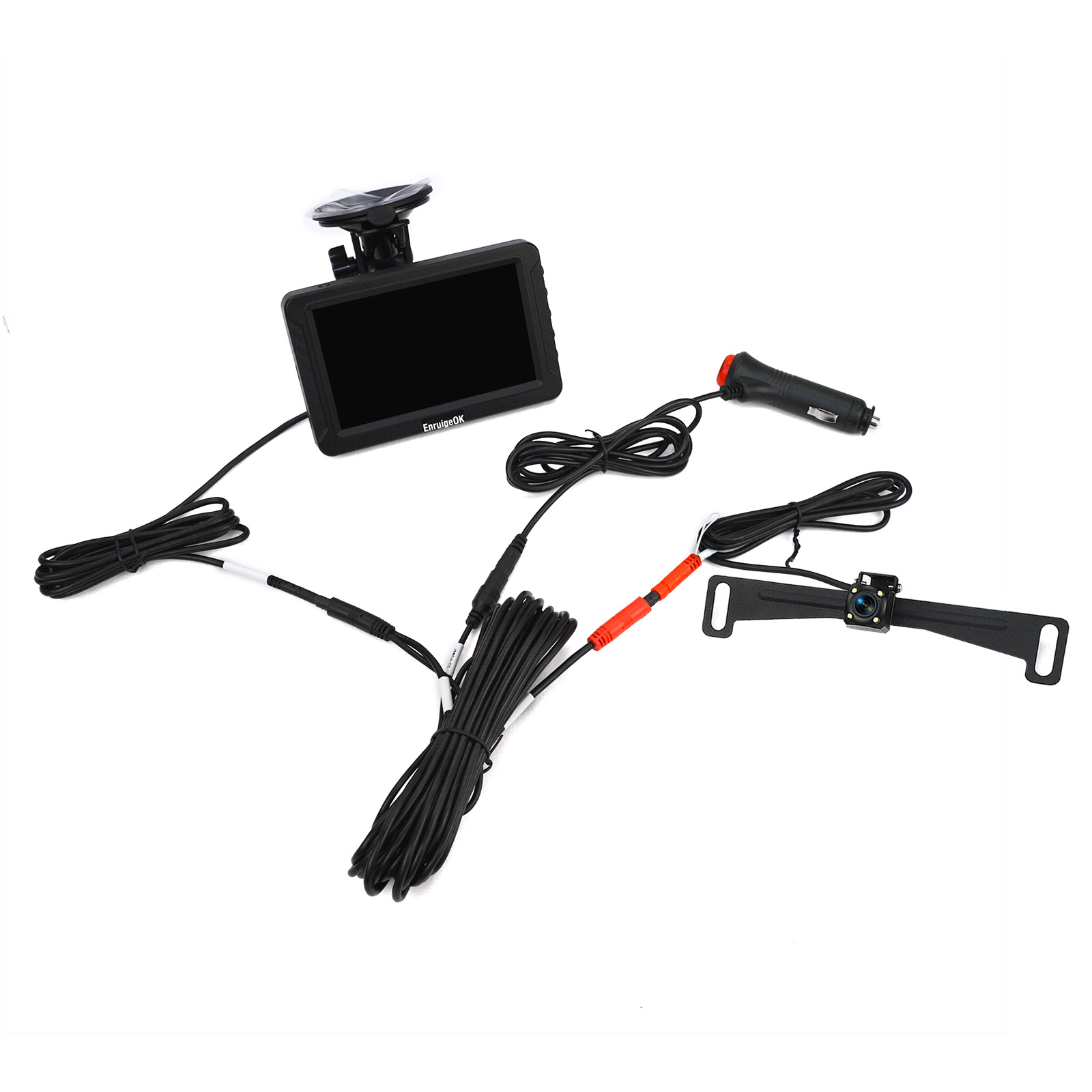

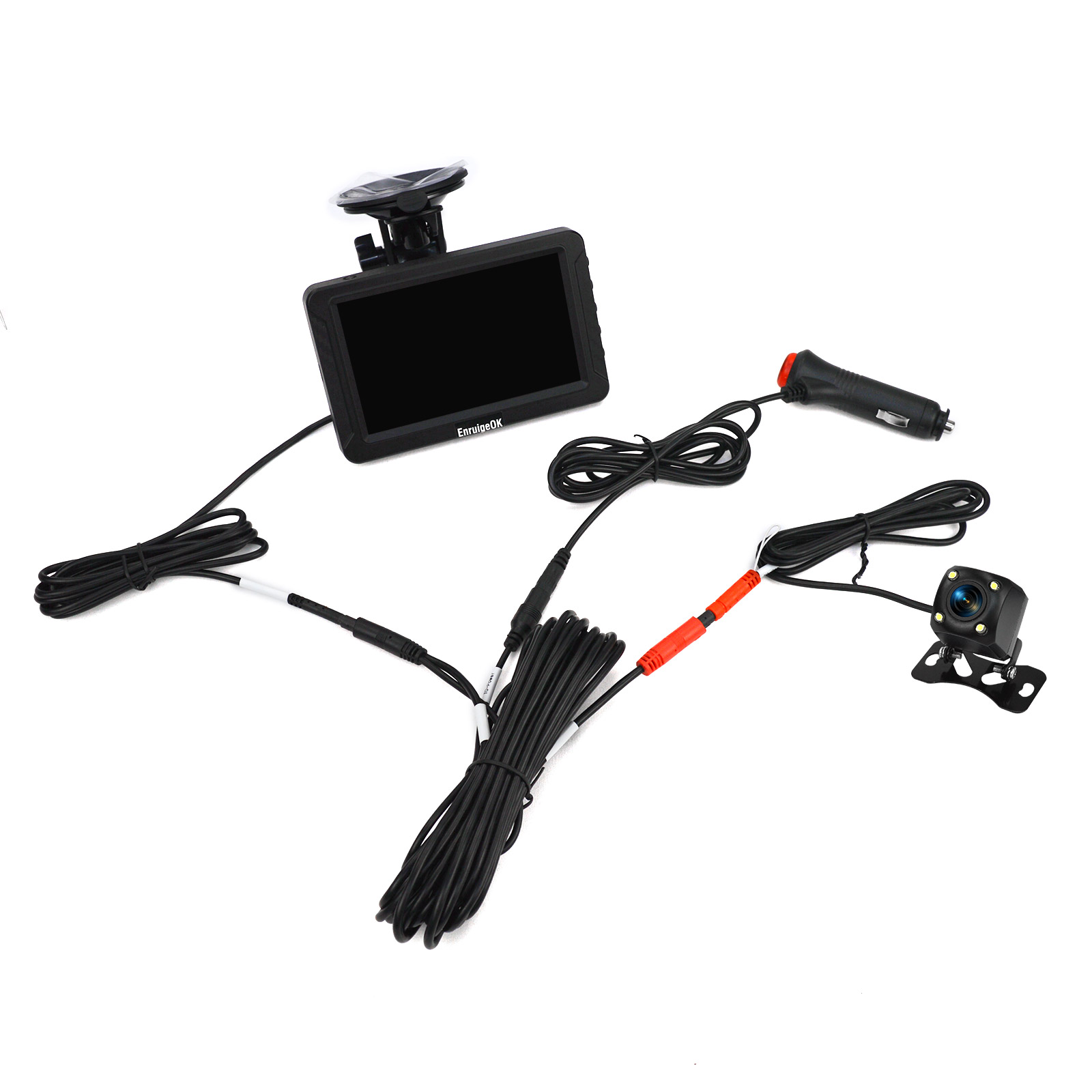

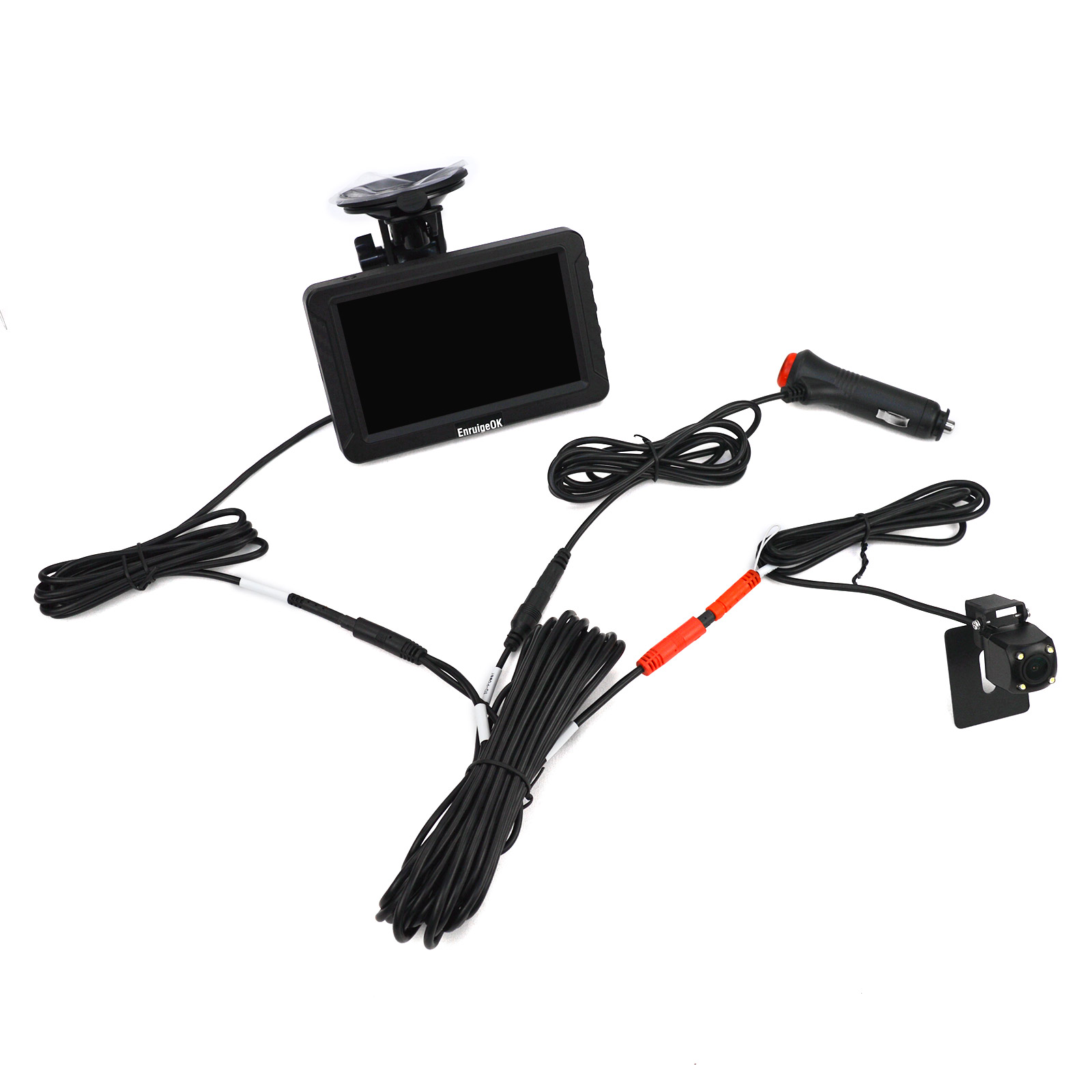

Package Includes:
1×5″ Monitor
1×Cameras
3×Video Cables
1×Monitor Power Cable

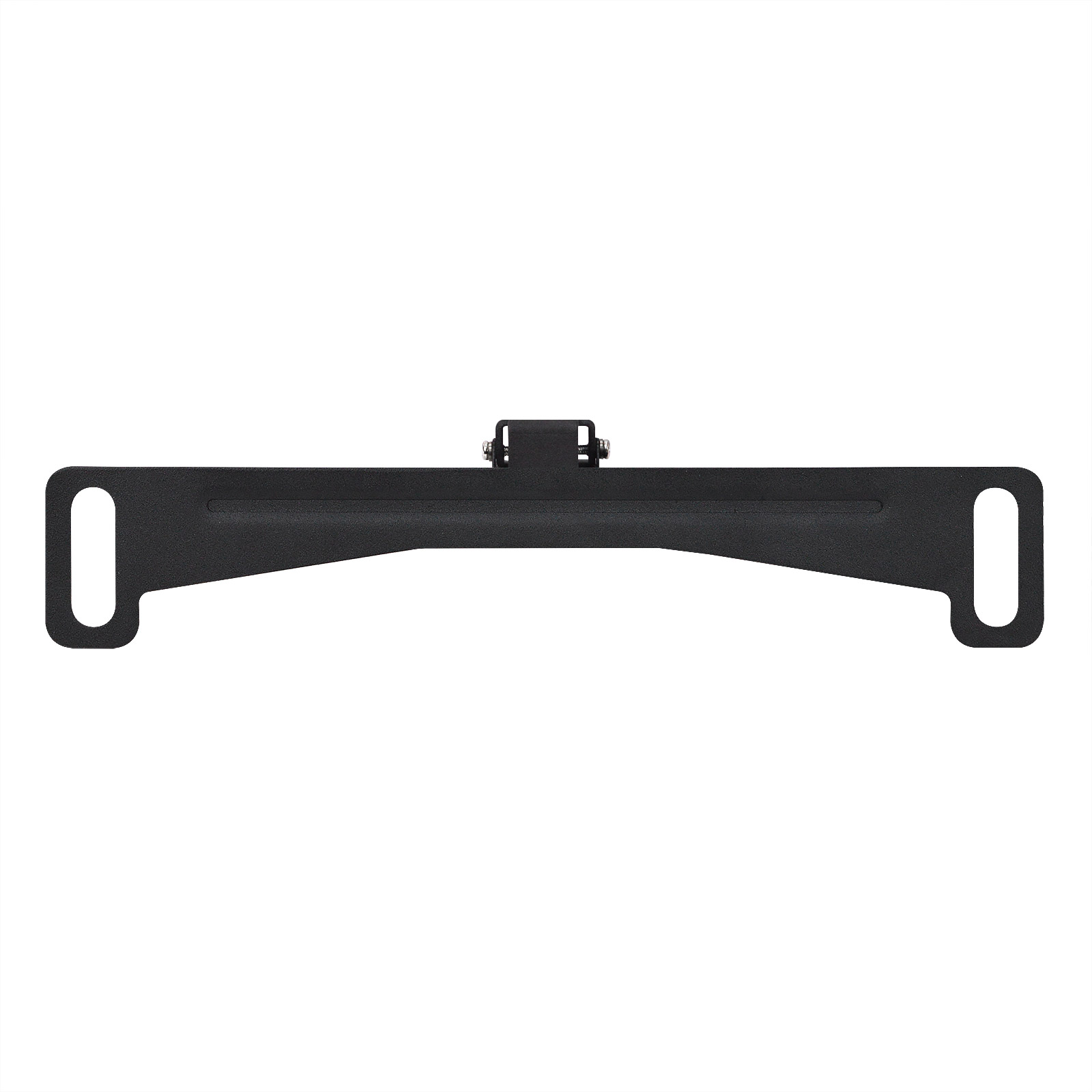

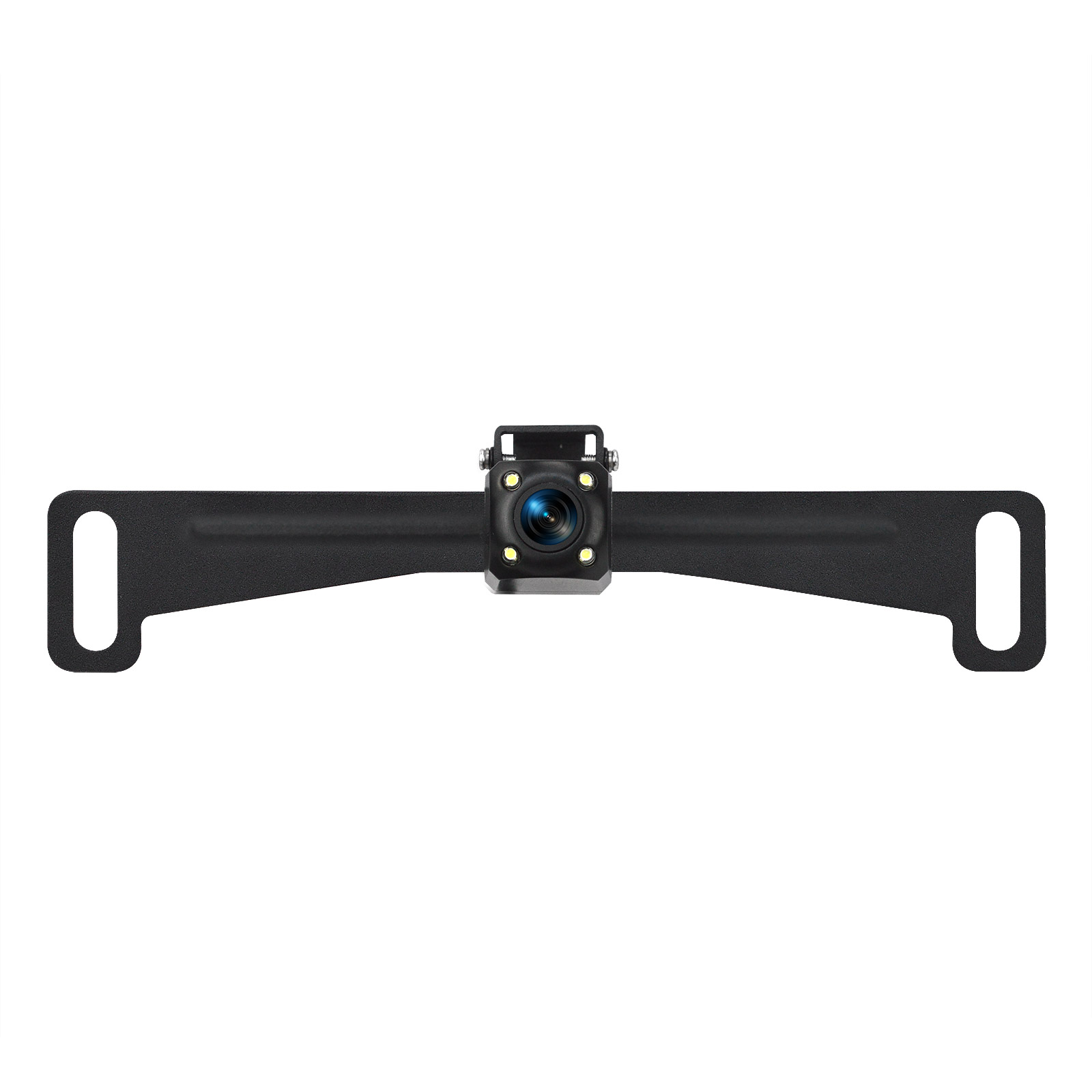

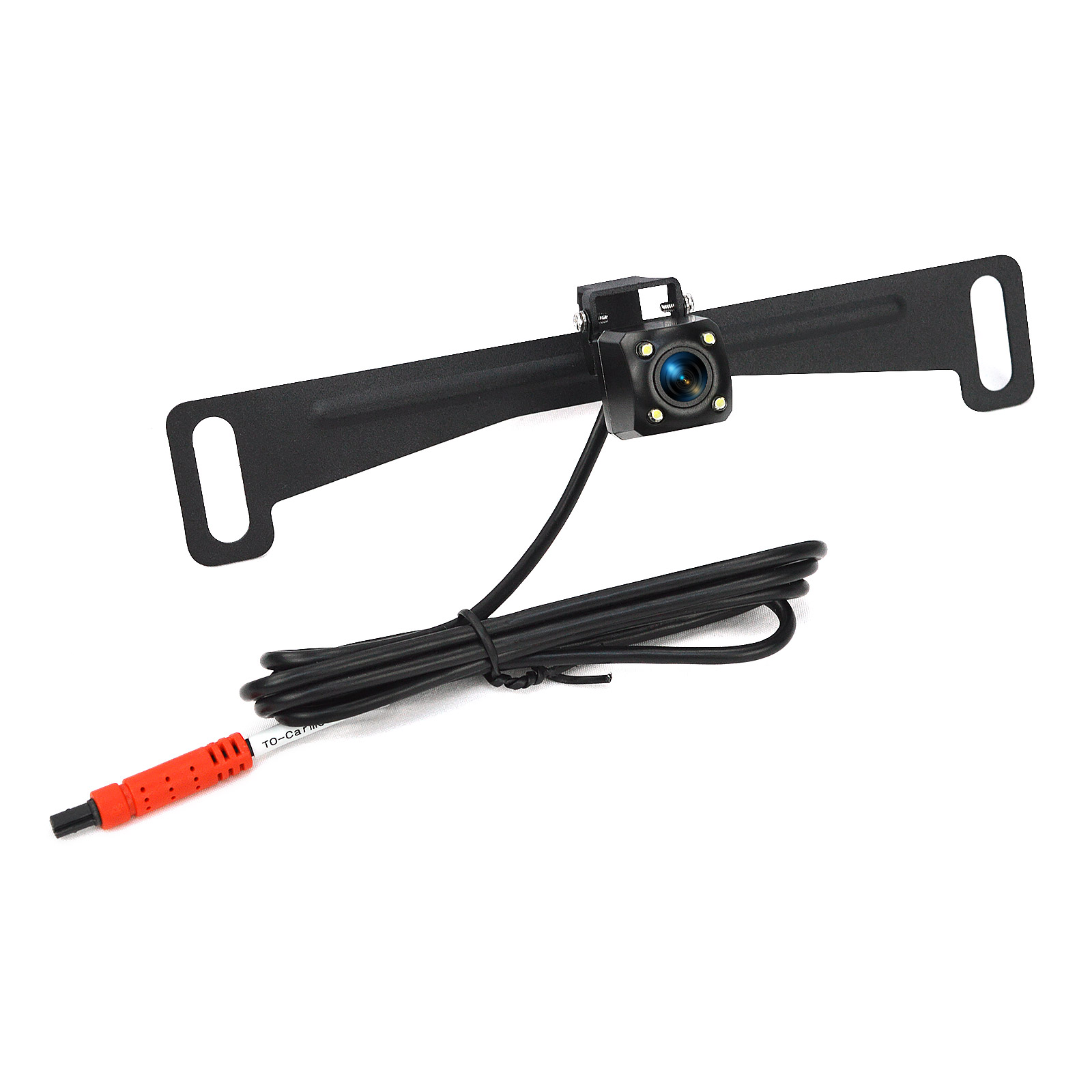

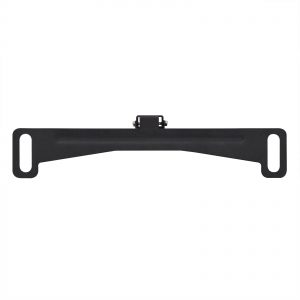

3×Bracket

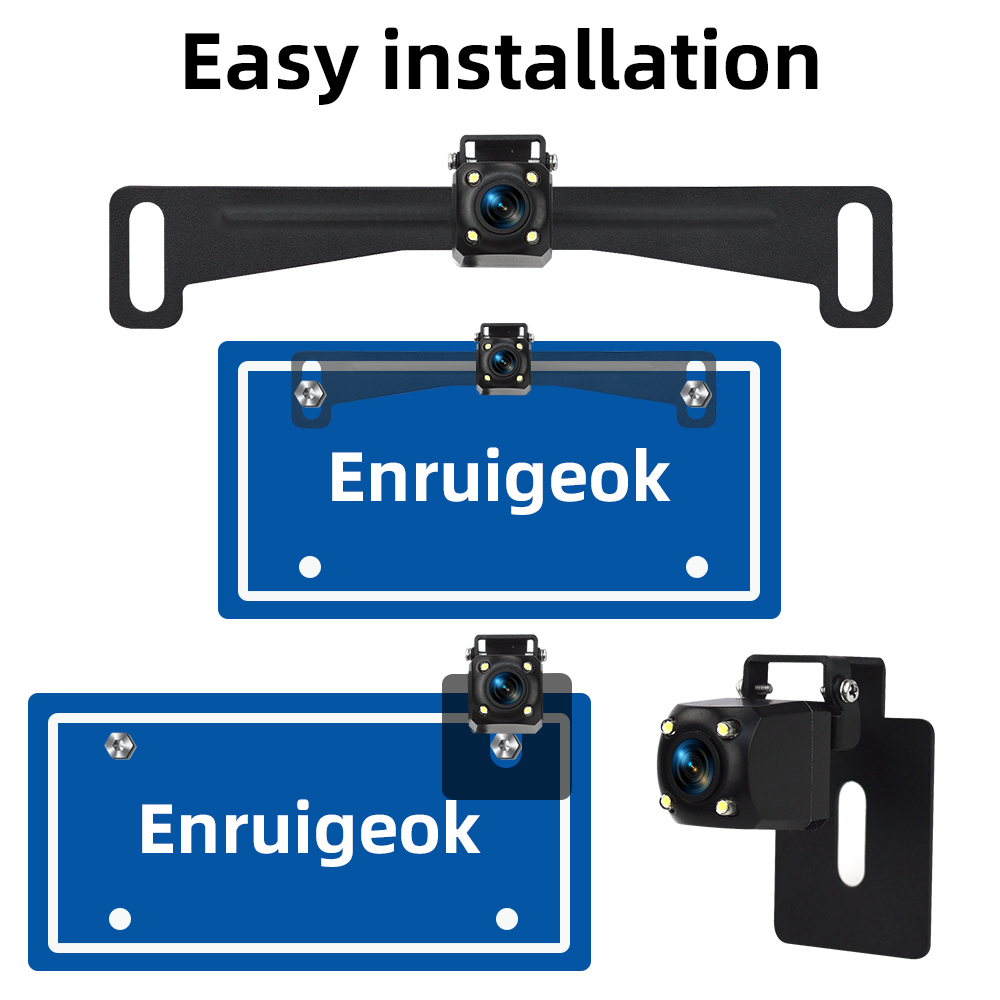

1×Installation Kit (screws + sticker)
1×User Manual
