AHD Camera:
– Image sensor: 1/3 “CMOS
– TV system: PAL/NTSC

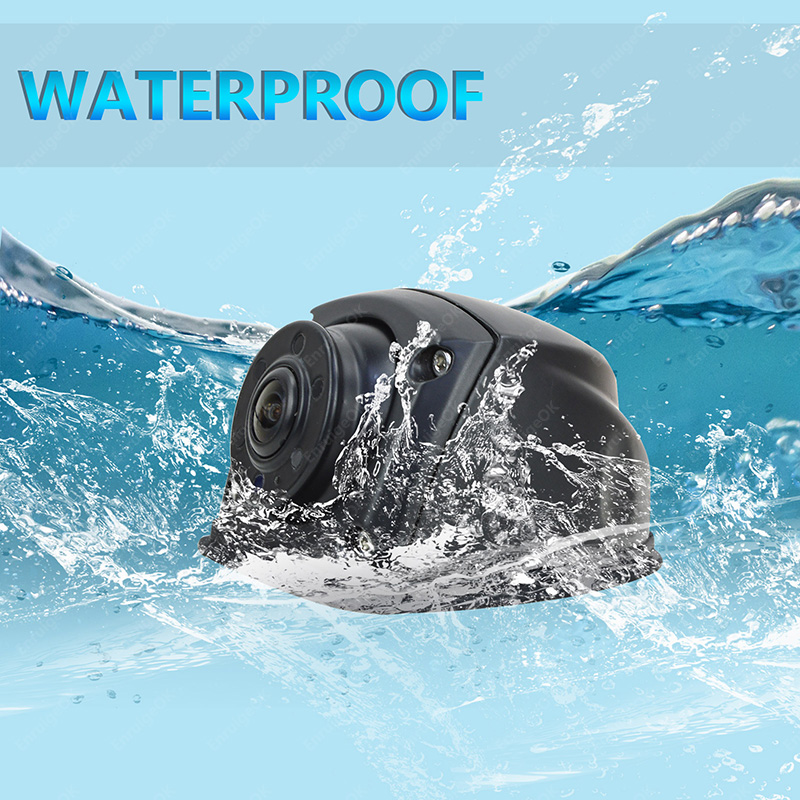

– waterproof rating: IP68
– Viewing angle: 120 °
– Effective pixel: 1920(H)x1080(V)
– Horizontal sync frequency: 15.625KHZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 1080P
– S/N Ratio: >52dB(AGC OFF)
– Current consumption: < 150mA
– Minimum illumination: 0.1-0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature: -20℃ to +70℃
CVBS Camera:
– Image sensor: 1/3 “CMOS
– TV system: PAL/NTSC
– waterproof rating: IP68
– Viewing angle: 120 °
– Effective pixel: 733(H)x493(V)
– Horizontal sync frequency: 15.625KHZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 700 TV Lines
– S/N Ratio: >52dB(AGC OFF)
– Current consumption: < 150mA
– Minimum illumination: 0.1-0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature: -20℃ to +70℃

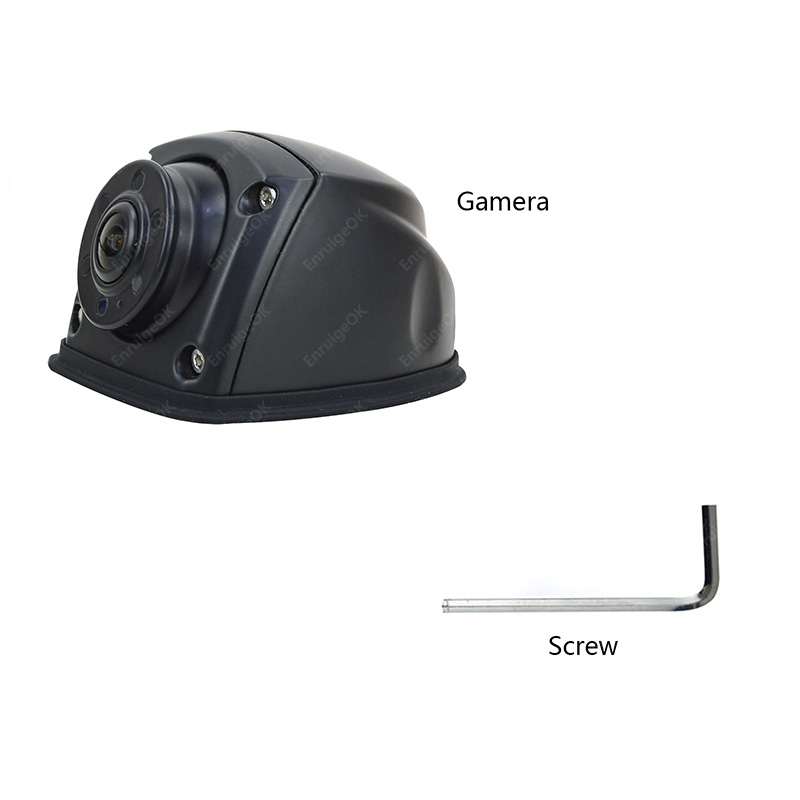

Package Include:

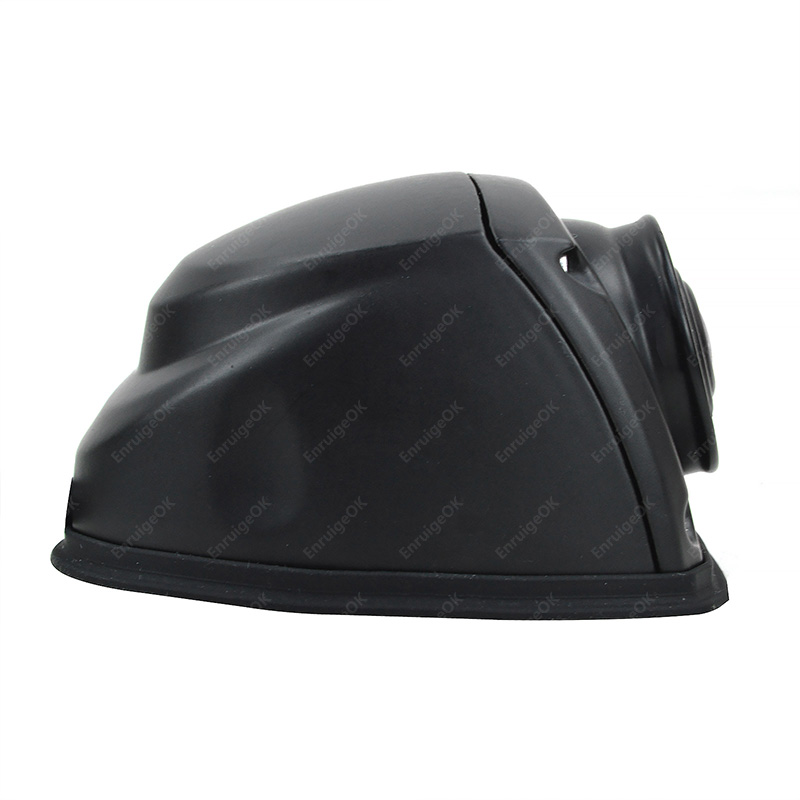

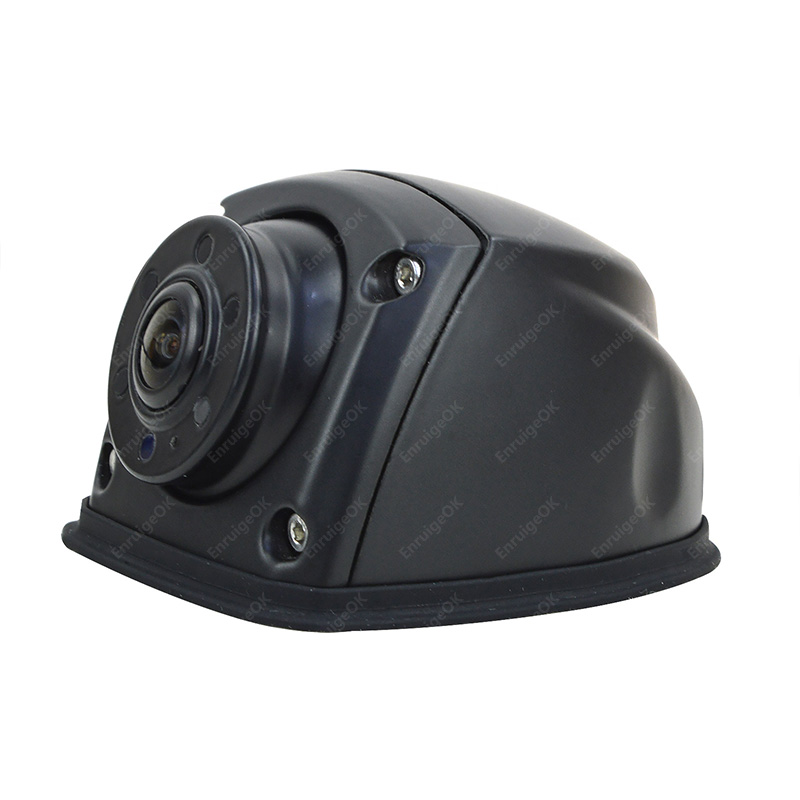

1 × Heavy Duty Truck Side View Camera
1 × Manual
