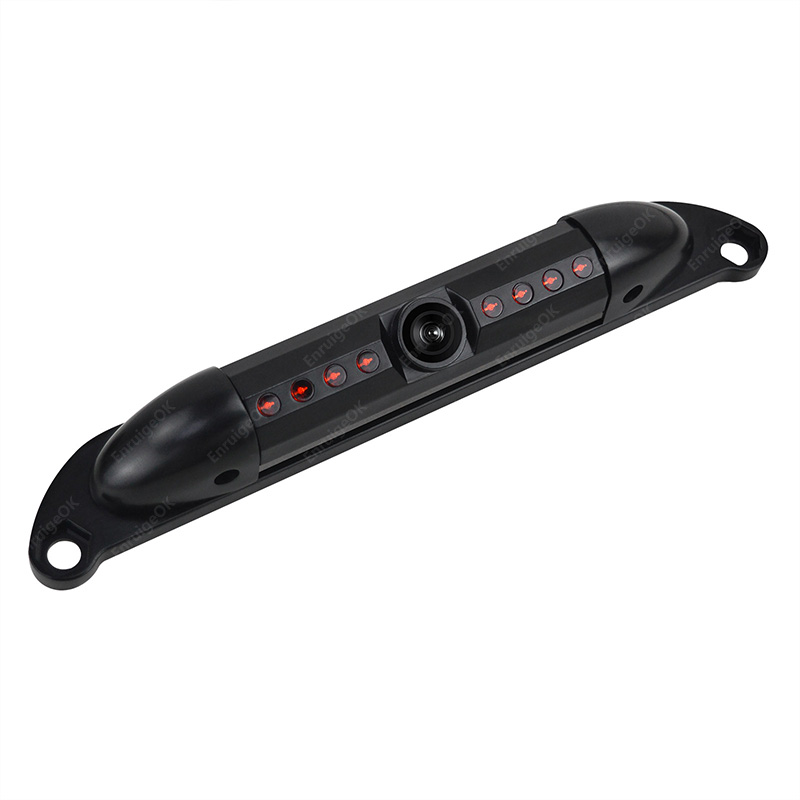

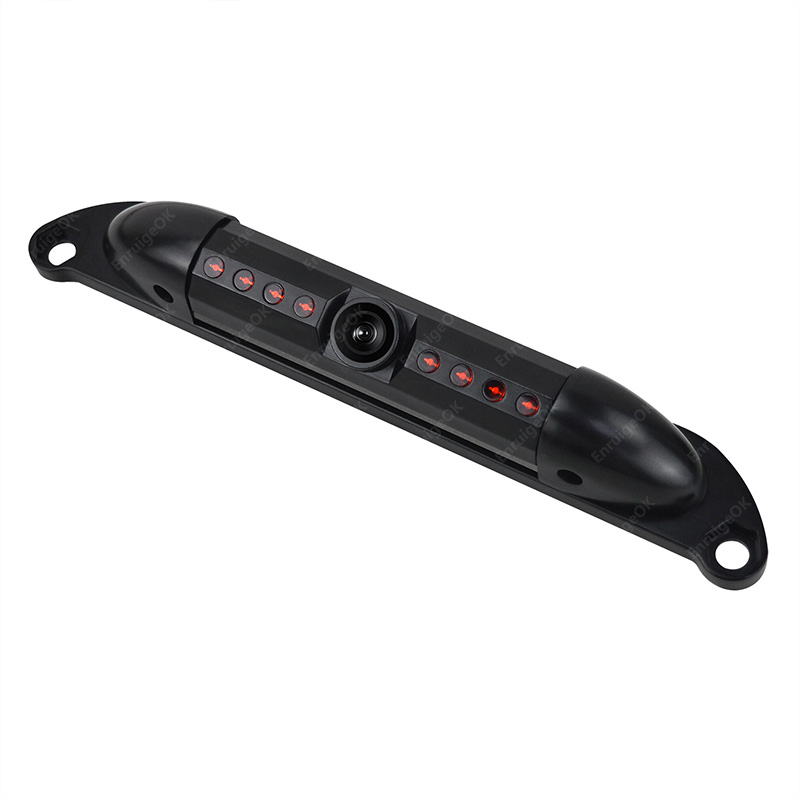

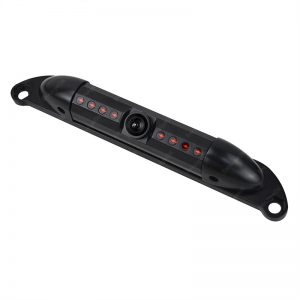

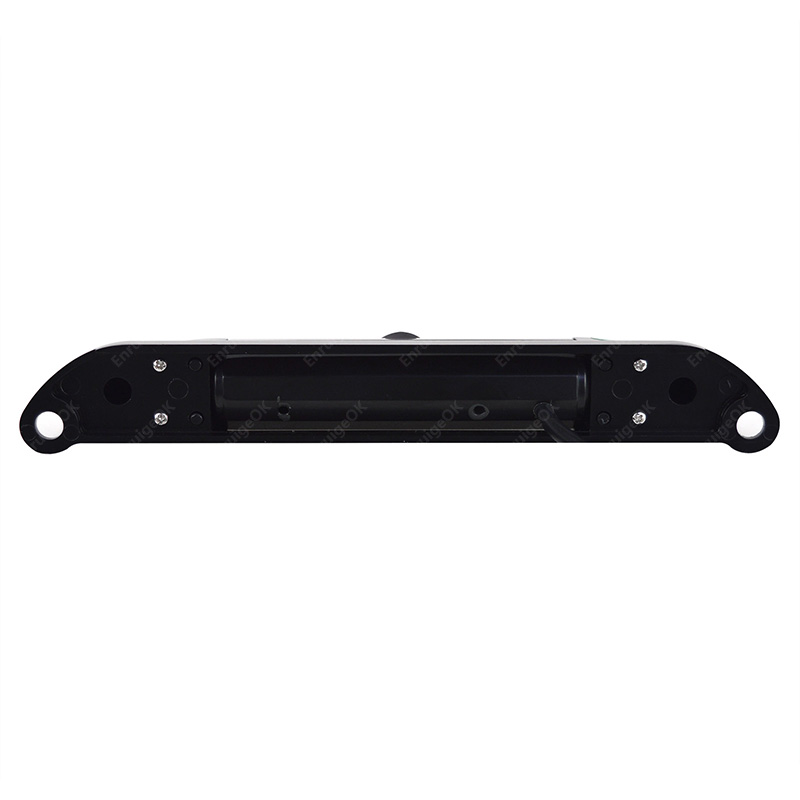

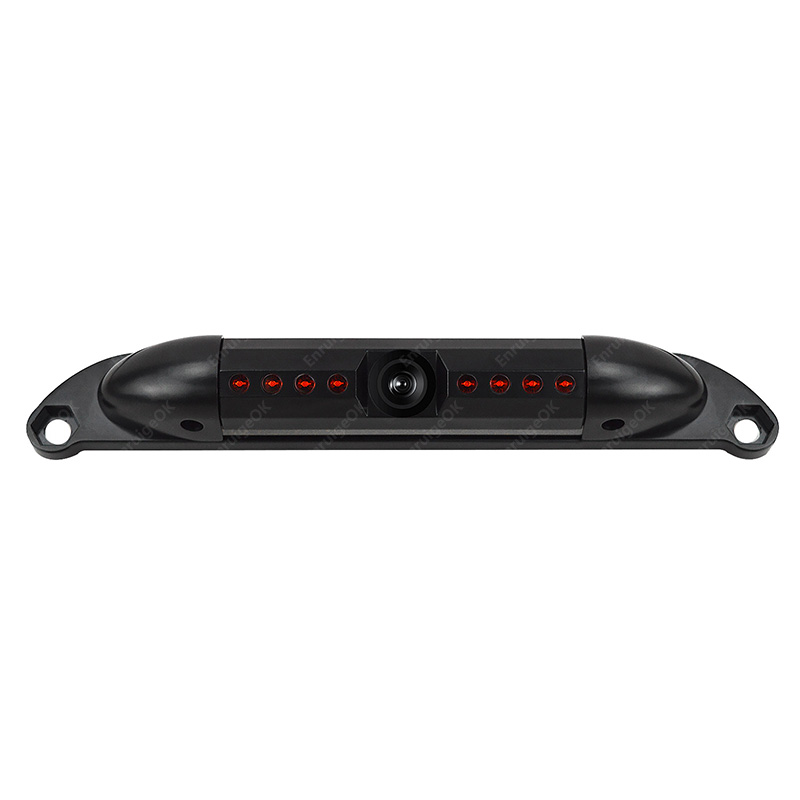

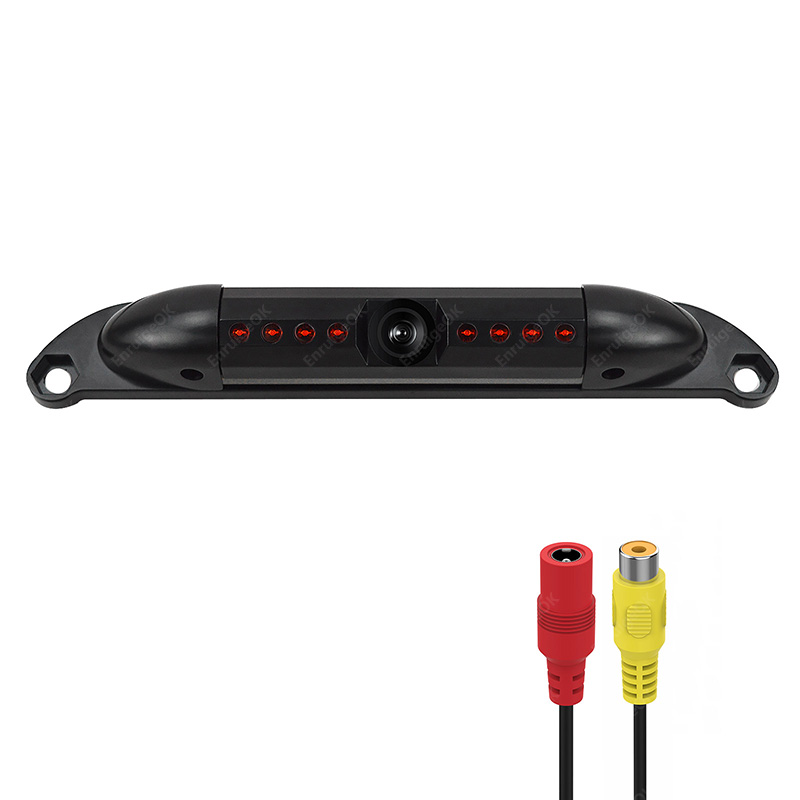

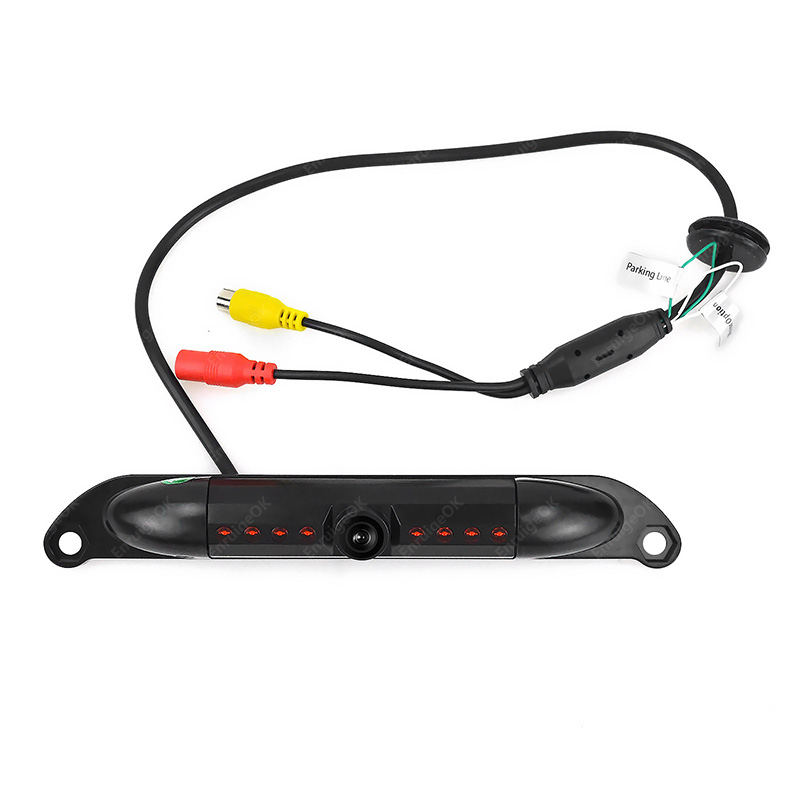

US License Plate Car Reverse Backup Rear View Camera HD Night Vision Waterproof

ERG-S52CVBS/AHD

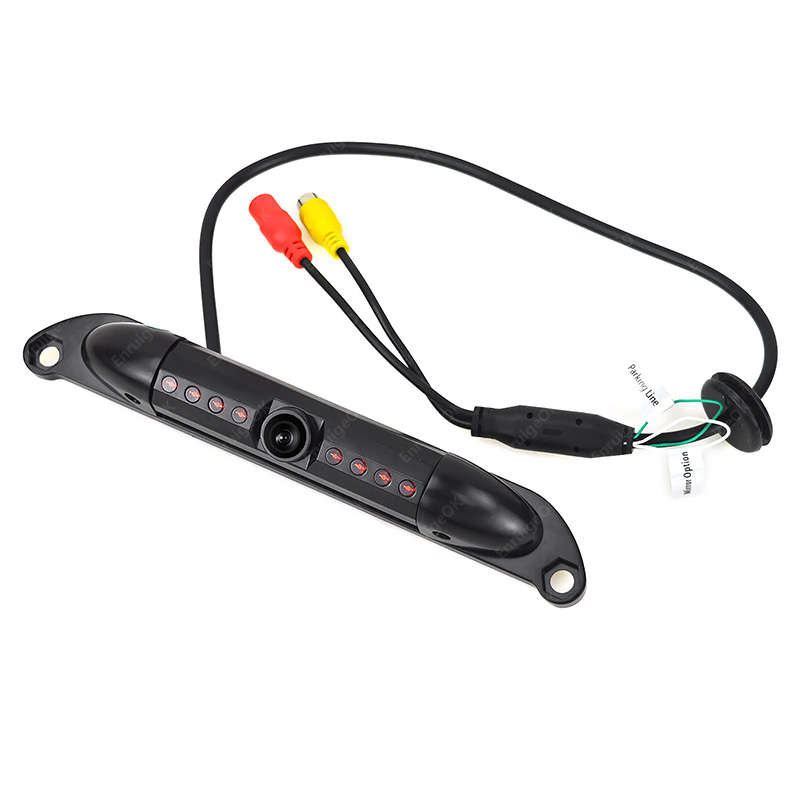

【Mirror and non-mirror optional】Mirrored image by default as a rear view camera, by cutting up the switch cable you get non-mirrored image to use as a front or side camera.
【Parking line ON/OFF】Guideline is On by default as a rear view camera, by cutting up the switch cable the guideline will be removed.
【Upgraded Infrared Light】Newest backup camera with 8pcs upgraded infrared lights, even in dark environment, it can accurately provide clearer and more comfortable images than ordinary camera, greatly improving the night vision effect.
【Ultra HD Screen & Accurate Color】The license plate backup camera is designed to eliminate blind spots and avoid obstacles when reversing. Built-in high-sensitivity color CMOS image sensor helps to provide the driver with ultra-high-definition clear pictures and eliminate all blind spots behind the car.
【IP68 Waterproof and 120° Adjustable Viewing Angle】Back up camera will be protected from strong water flow from any direction, such as rain and car washing. Works well in extreme weather. Adjustable 120° wide viewing angle can help you clearly check hidden blind spots, making parking safer and easier.
【 Universal License Plate Frame Backup Camera】 Perfect for most of vehicles that use a standard US license plate.

Specifications:
Color: Black
Material: Metal + Zinc Alloy
Lens Material: Glass
Image sensor: 1/4 “CMOS
TV system: NTSC
Waterproof rating: IP68
Effective pixel: 733(H)x493(V)
Horizontal sync frequency: 15.625KHZ
Scanning system: 2:1 interface
Sync system: Internal
ACG: Auto
BLC: Auto
Resolution: 480TV lines
S/N Ratio: more than 48dB
Current consumption: no more than 150mA
Minimum illumination: 0.1Lux
Power supply: DC12V
Power: 5W

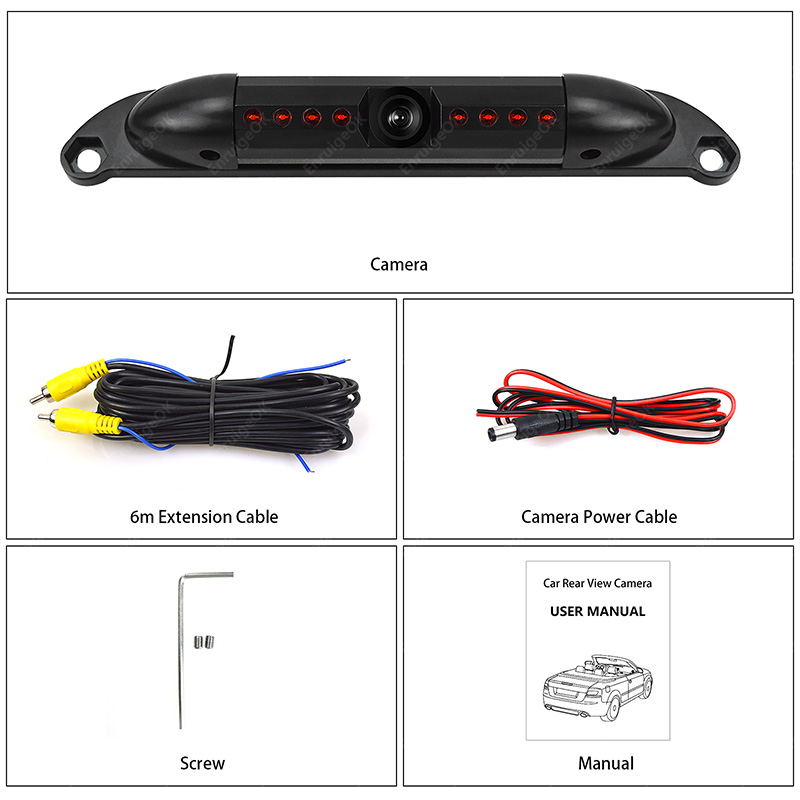

Package Includes:
1×US License Plate Frame Camera
1×6M RCA video cable
1×DC cable
1×Screw
1×Manual
