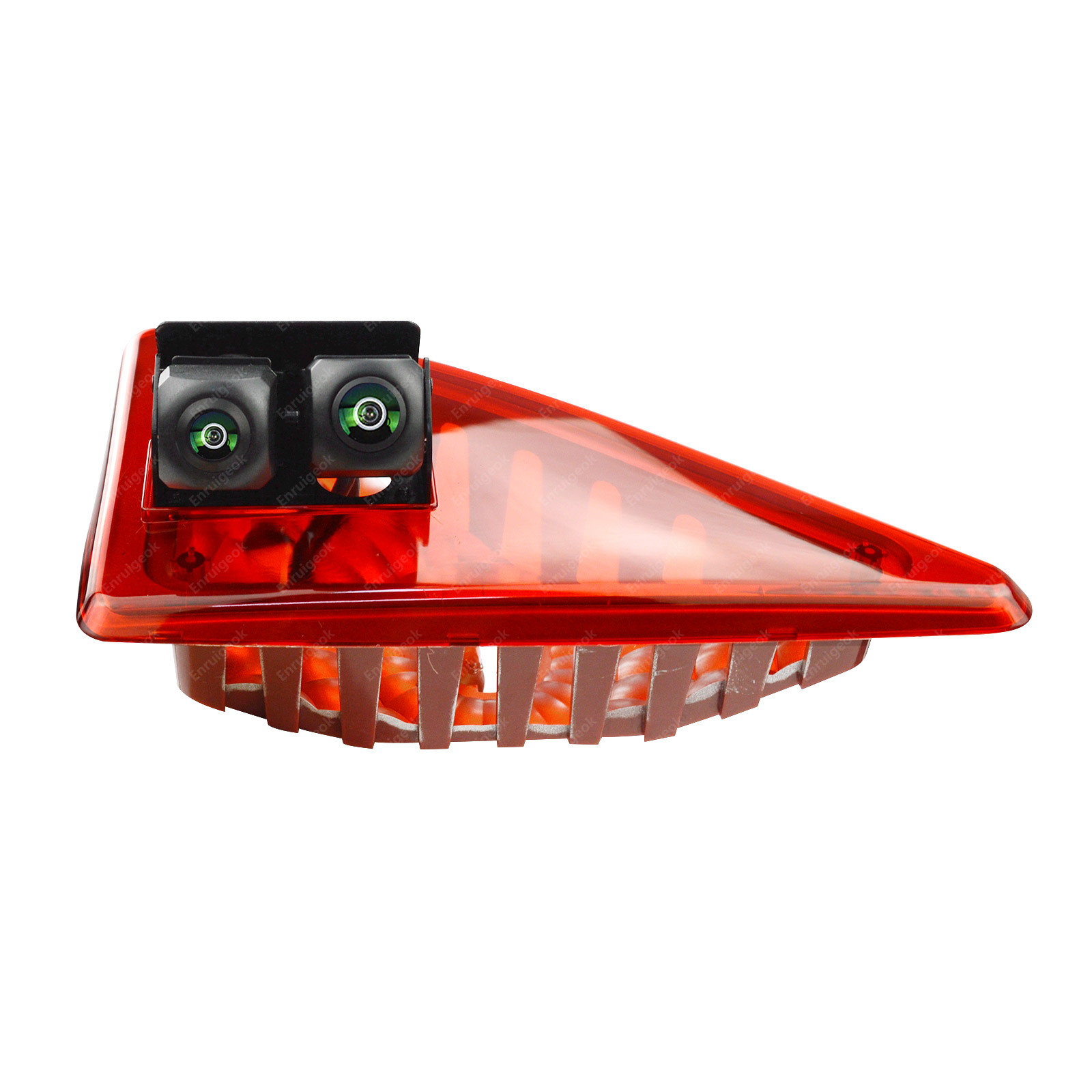

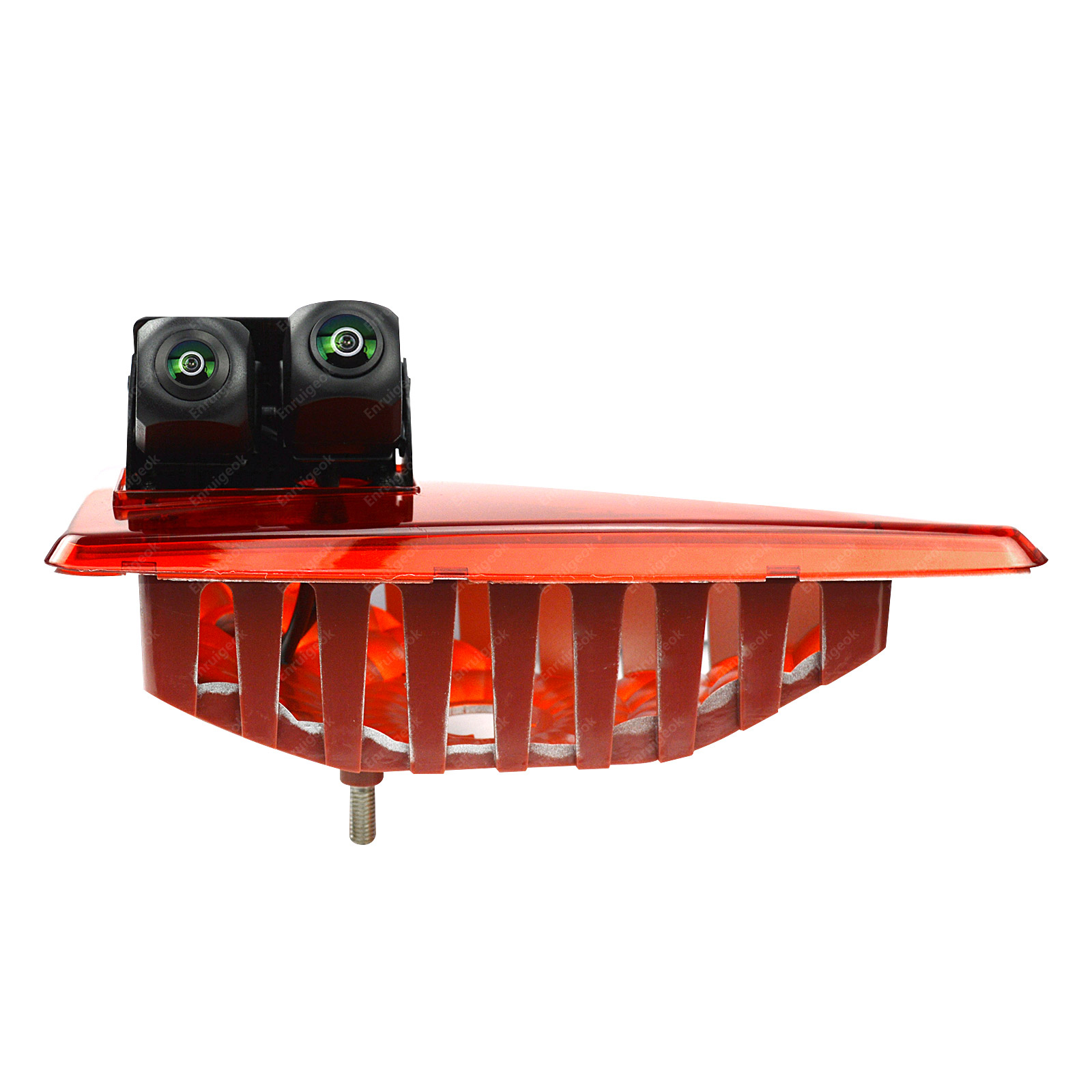

Renault Master Brake Light Camera

ERG-S135

Brake Light Replacement Camera
This camera is a direct replacement for the original vehicle brake light. It features simple installation and a perfect factory-style fitting.

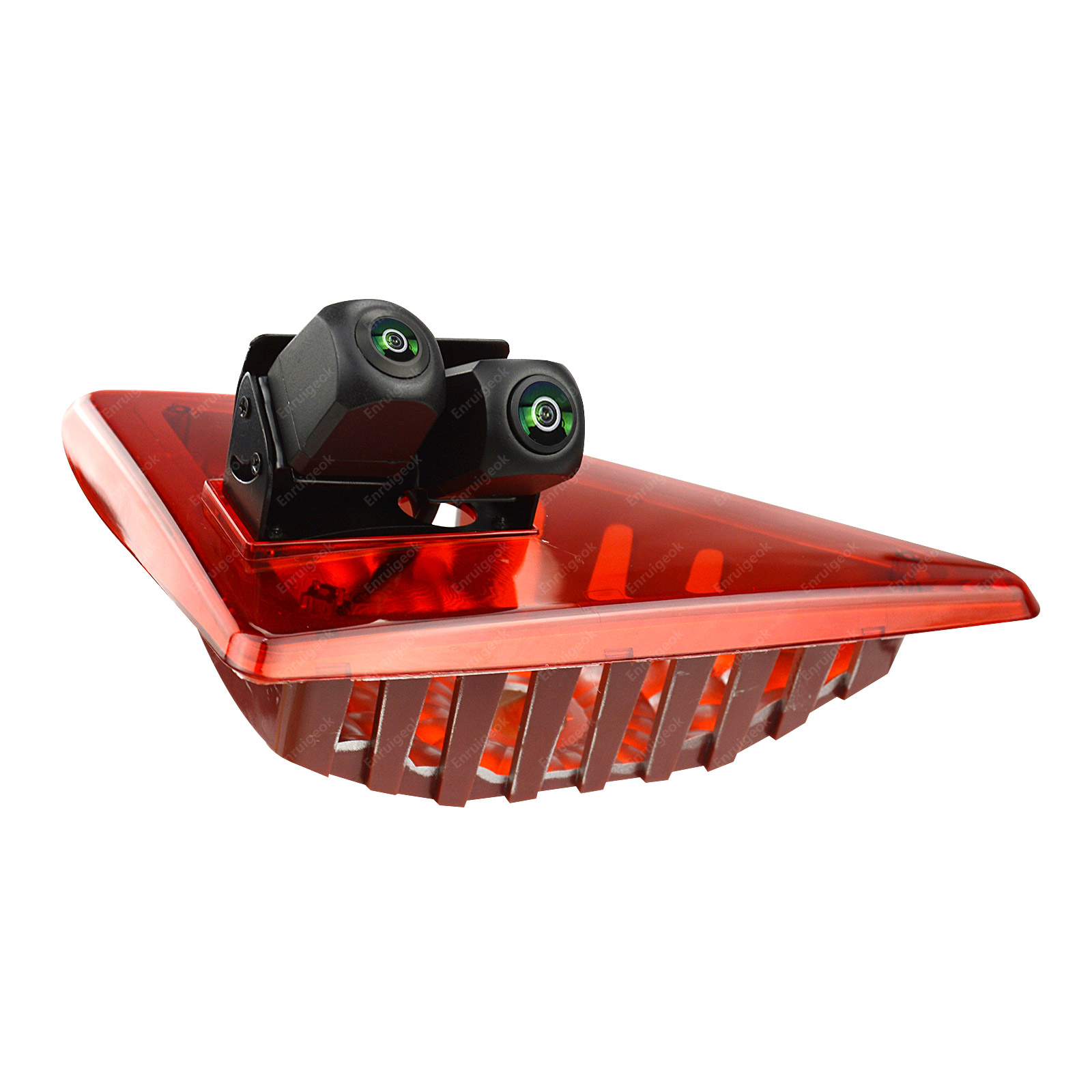

Dual Lens Design
Dual lens reversing camera with two independent viewing angles:
Left screw (CH1 camera):
Adjusts the rear view camera, please rotate the screw
to tilt the camera up or down for rear viewing.
Right screw (CH2 camera):
Adjusts the reversing camera, please rotate the screw to
position the camera for parking.
Turn each screw clockwise or counterclockwise until both
cameras are properly aligned.
Make sure:
The CH1 camera clearly captures the rear view area.
The CH2 camera provides parking wide-angle view.
Wide Voltage Range (DC 9V-35V)
Compatible with vehicle power systems with voltage fluctuations, ensuring stable and reliable performance under all working conditions.
Image Sensor & Night Vision
Equipped with a high-quality color CMOS sensor for vivid color reproduction. 8 built-in infrared LED lights around the lens deliver clear and superior night vision performance.
Horizontal Viewing Angle
Boasting a maximum 170° ultra-wide viewing angle, it captures every detail of the rear surrounding environment clearly.
Waterproof Rating
Adopted IP69 professional waterproof design, the camera is fully waterproof for all weather conditions.
