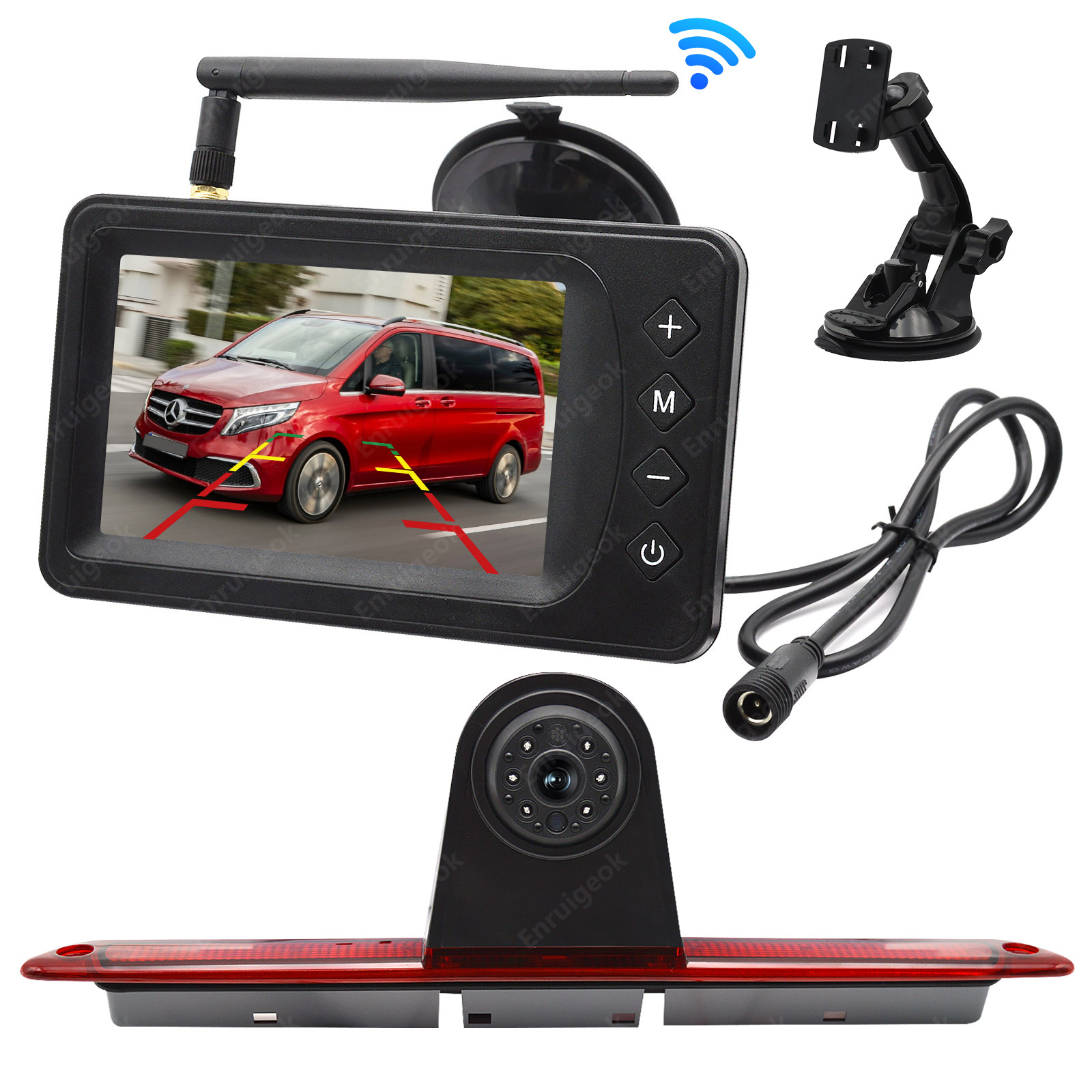

5″ Wireless Backup Cam Kit for Mercedes-Benz Sprinter



Description:
* Enhance your parking safety with our backup camera and monitor system. When reversing, the monitor displays clear images from the rear camera, ensuring a seamless parking experience.

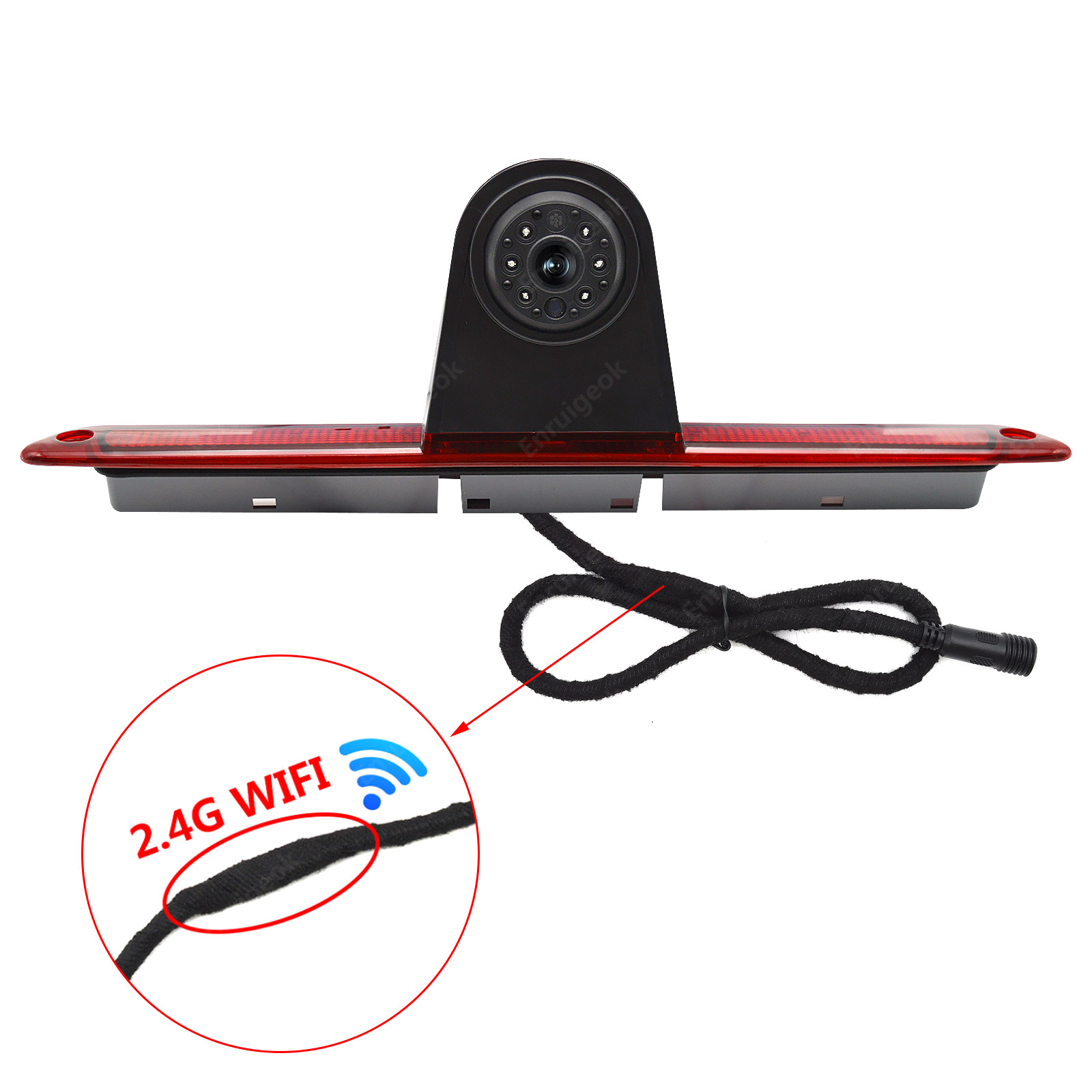

* Utilizing advanced digital wireless transmission technology, this system provides interference-free signals with an unobstructed effective range of up to 200m.

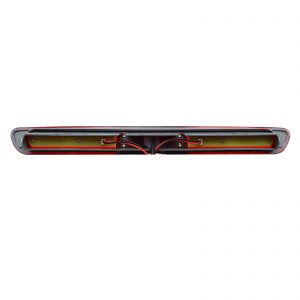

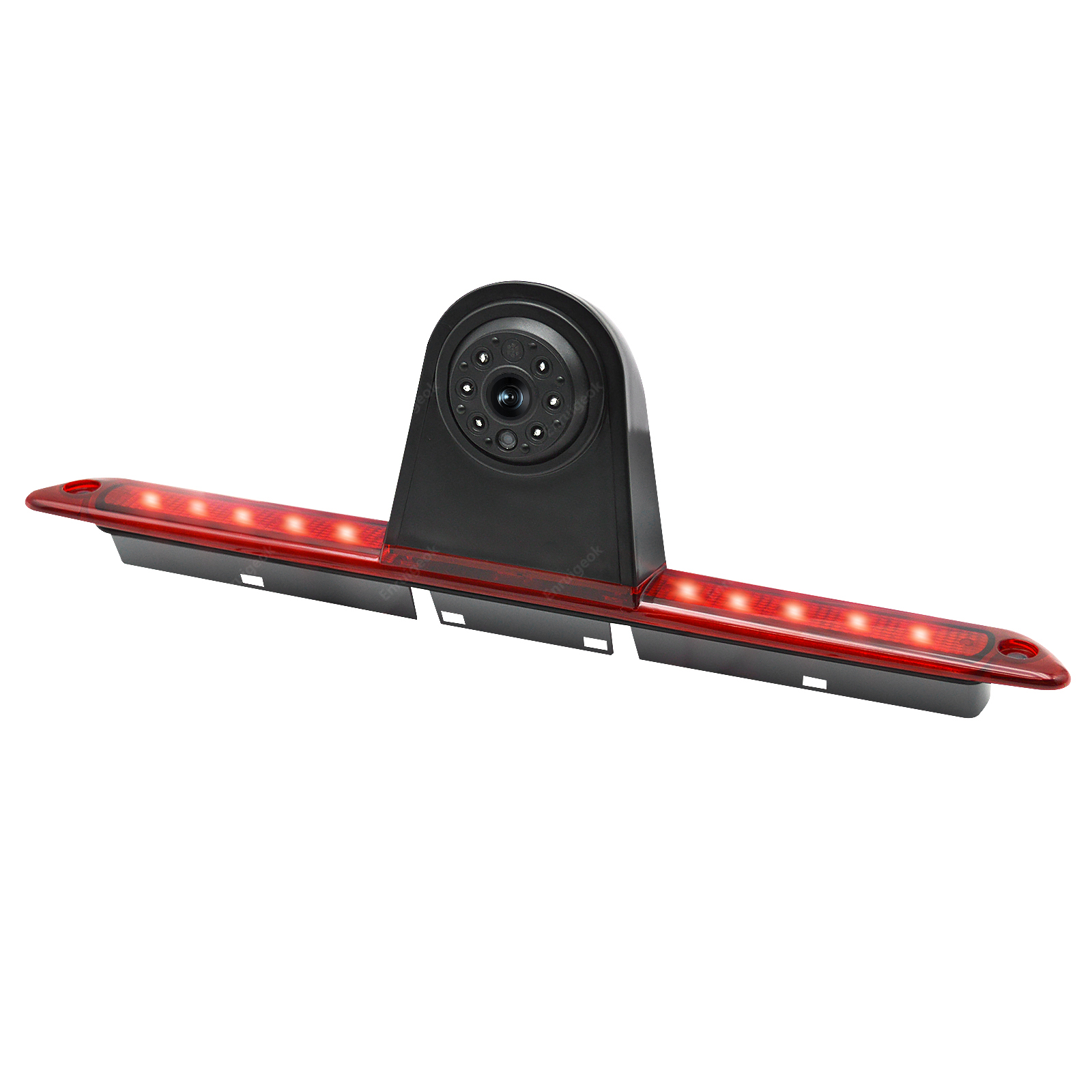

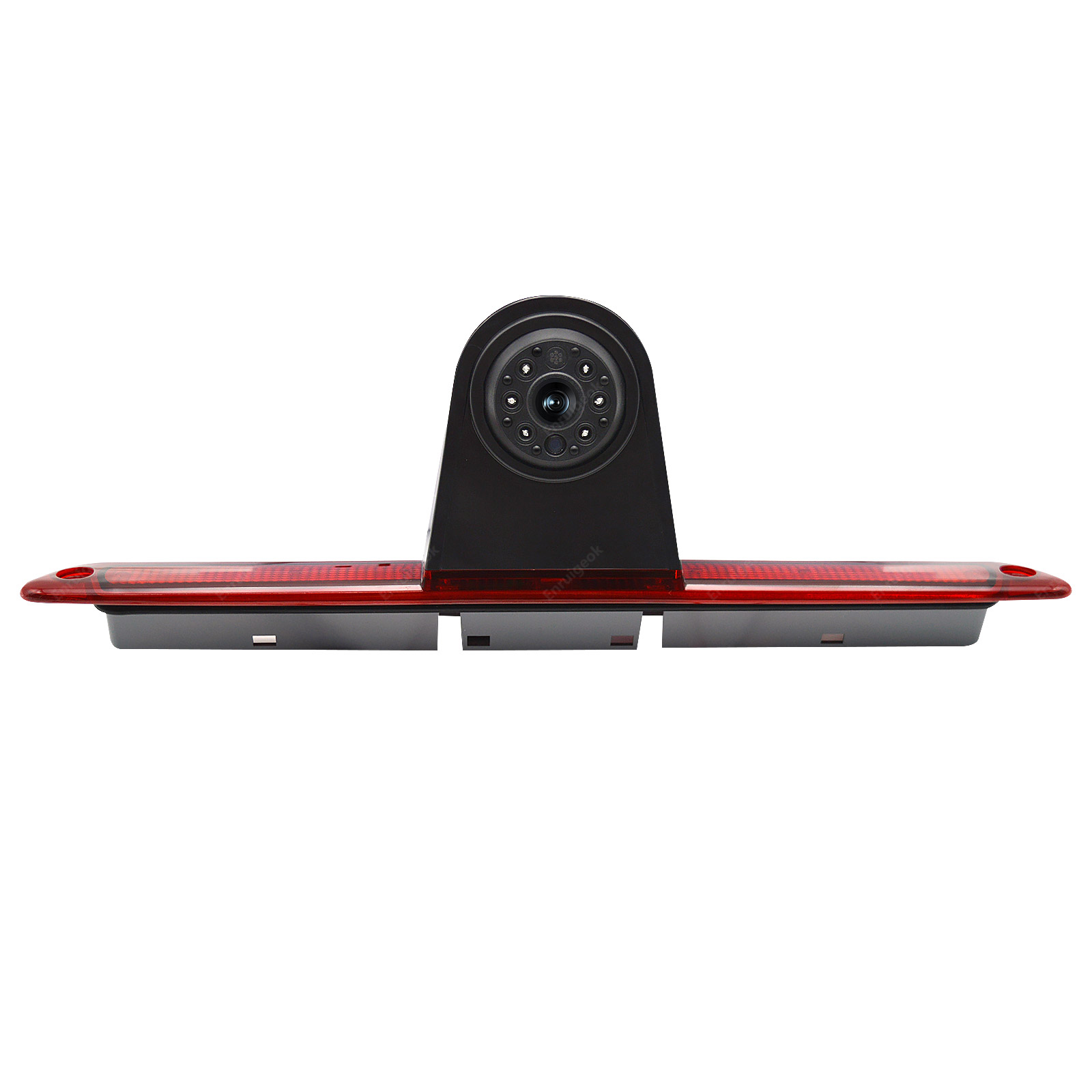

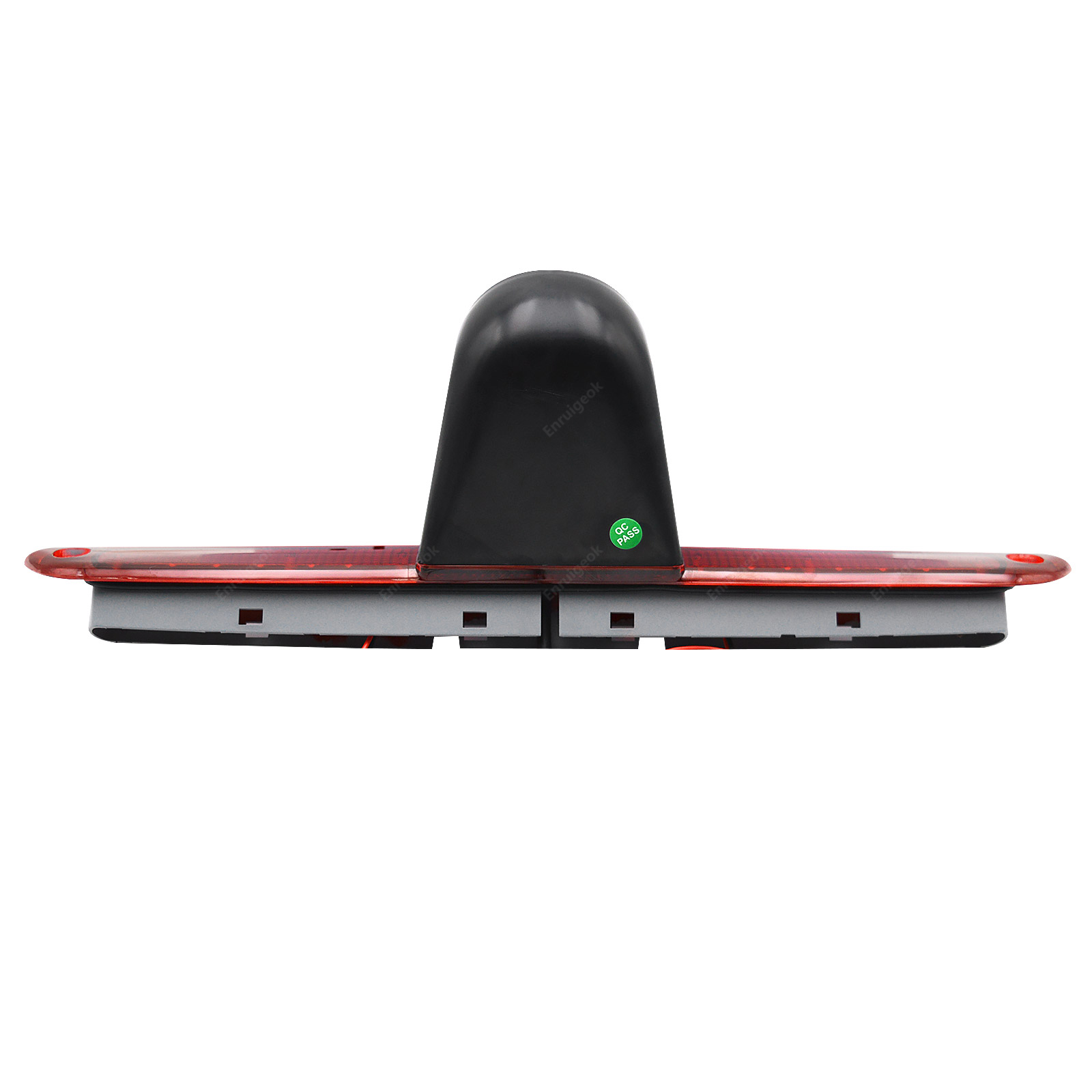

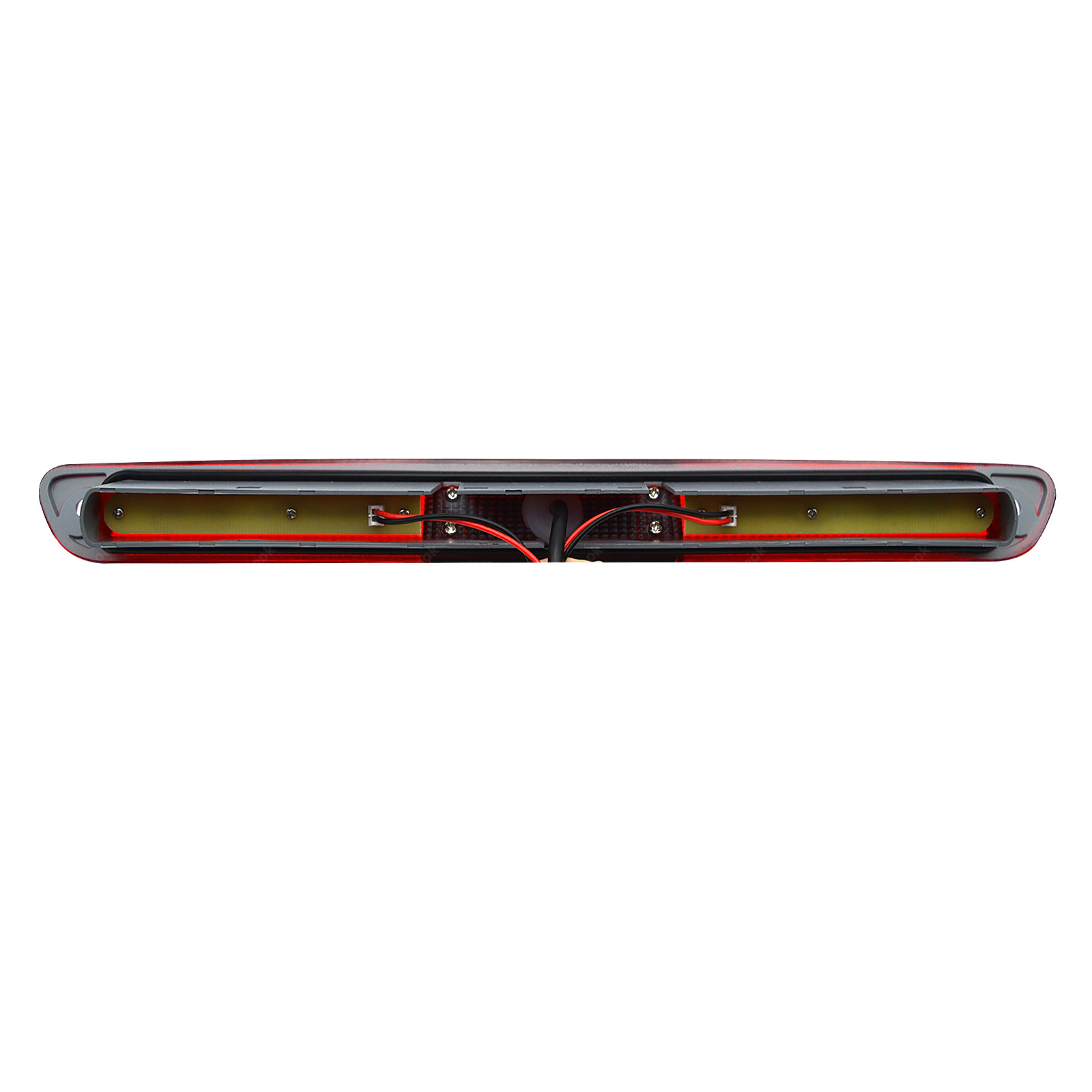

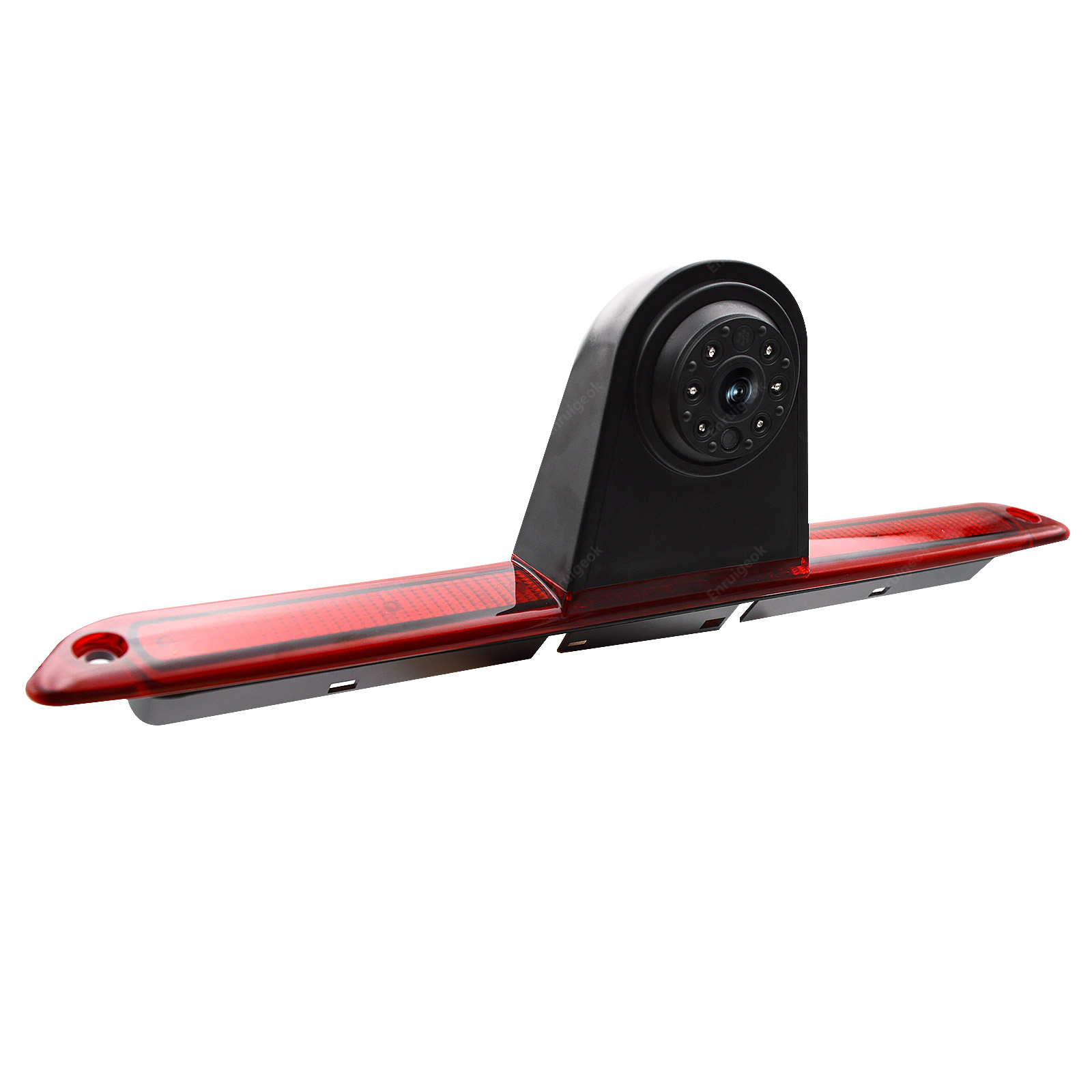

* The brake light replacement camera integrates seamlessly with your vehicle, using a 1/3″ CMOS sensor for AHD 1080P resolution and enhanced color imaging. Equipped with a built-in IR-CUT and six infrared lights, it guarantees excellent night vision.

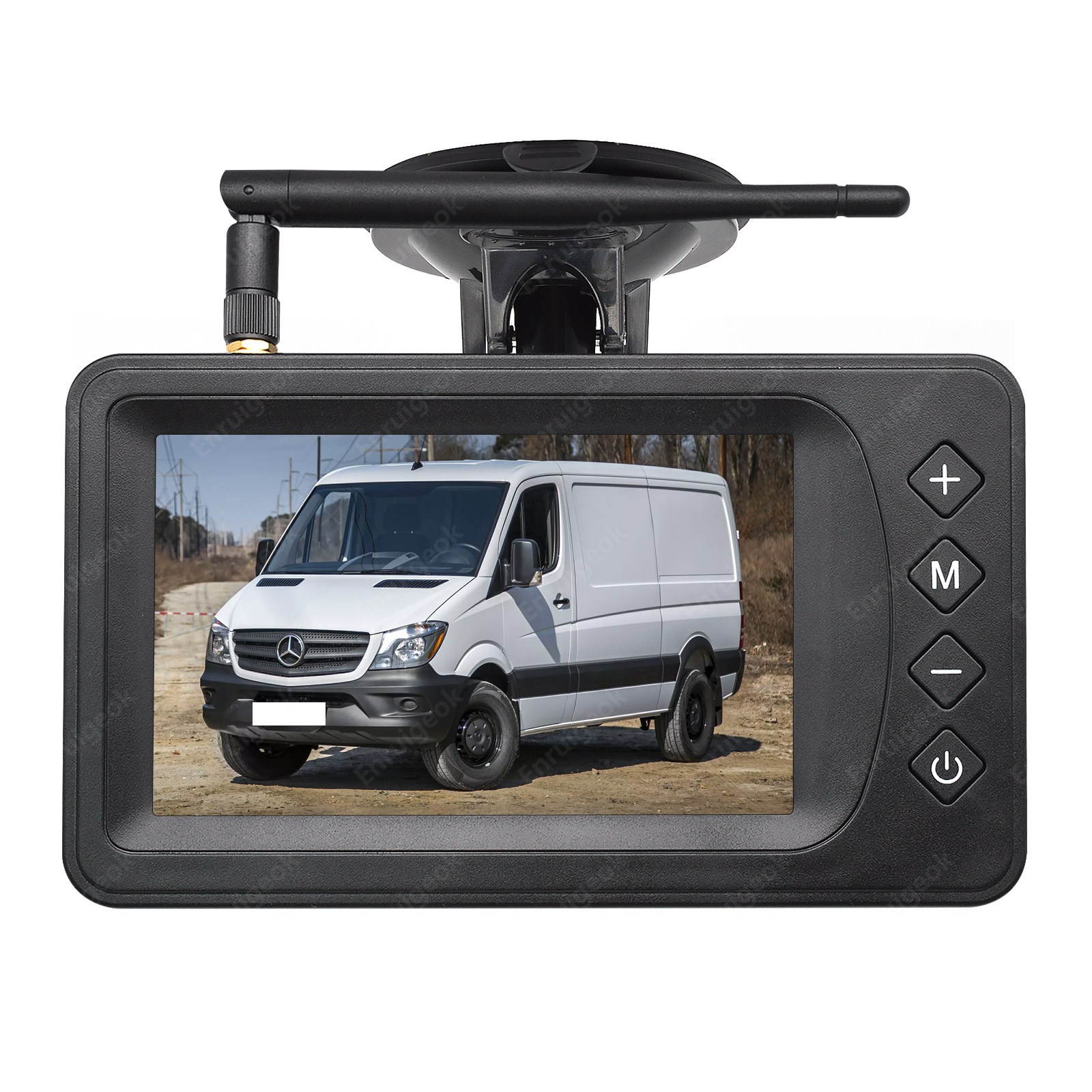

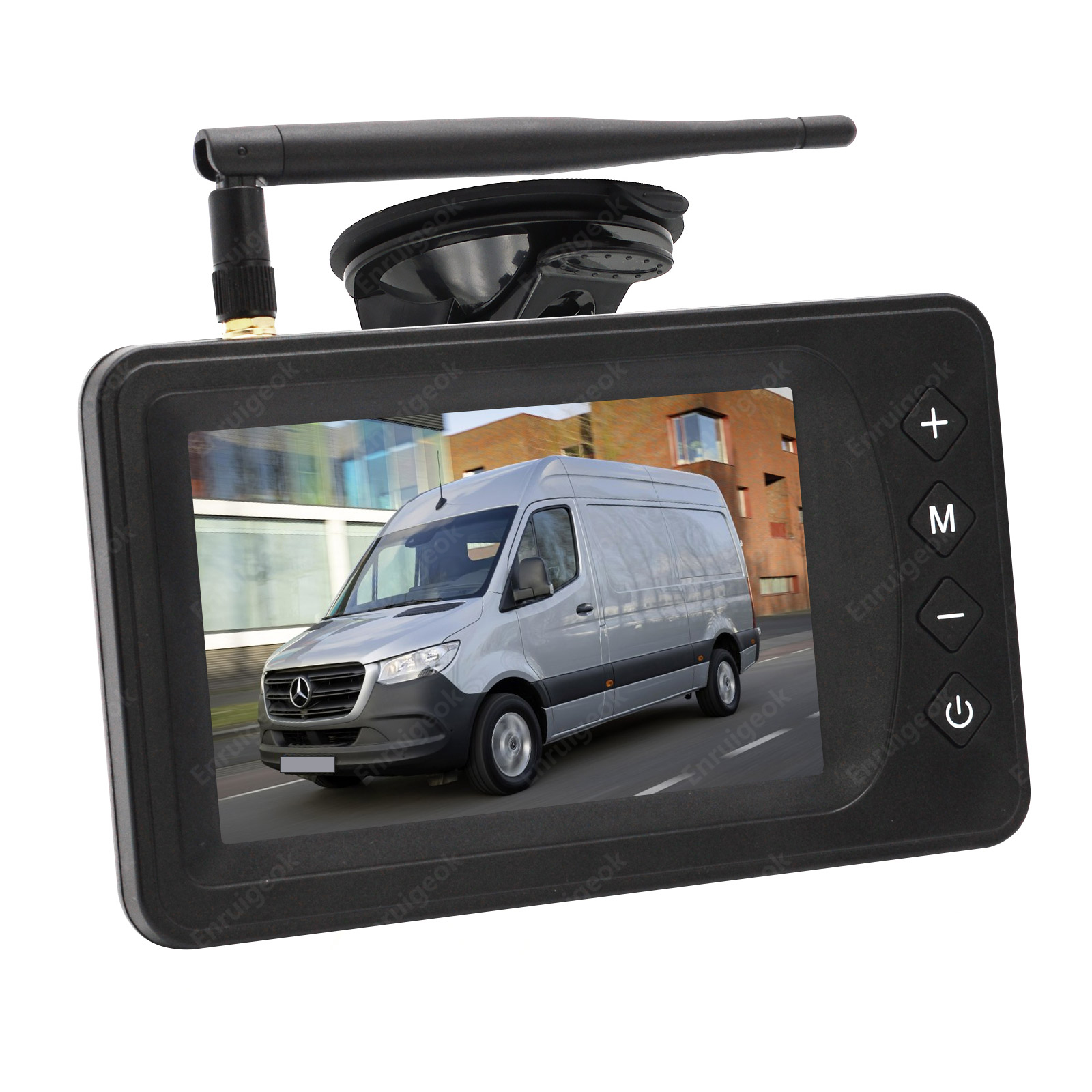

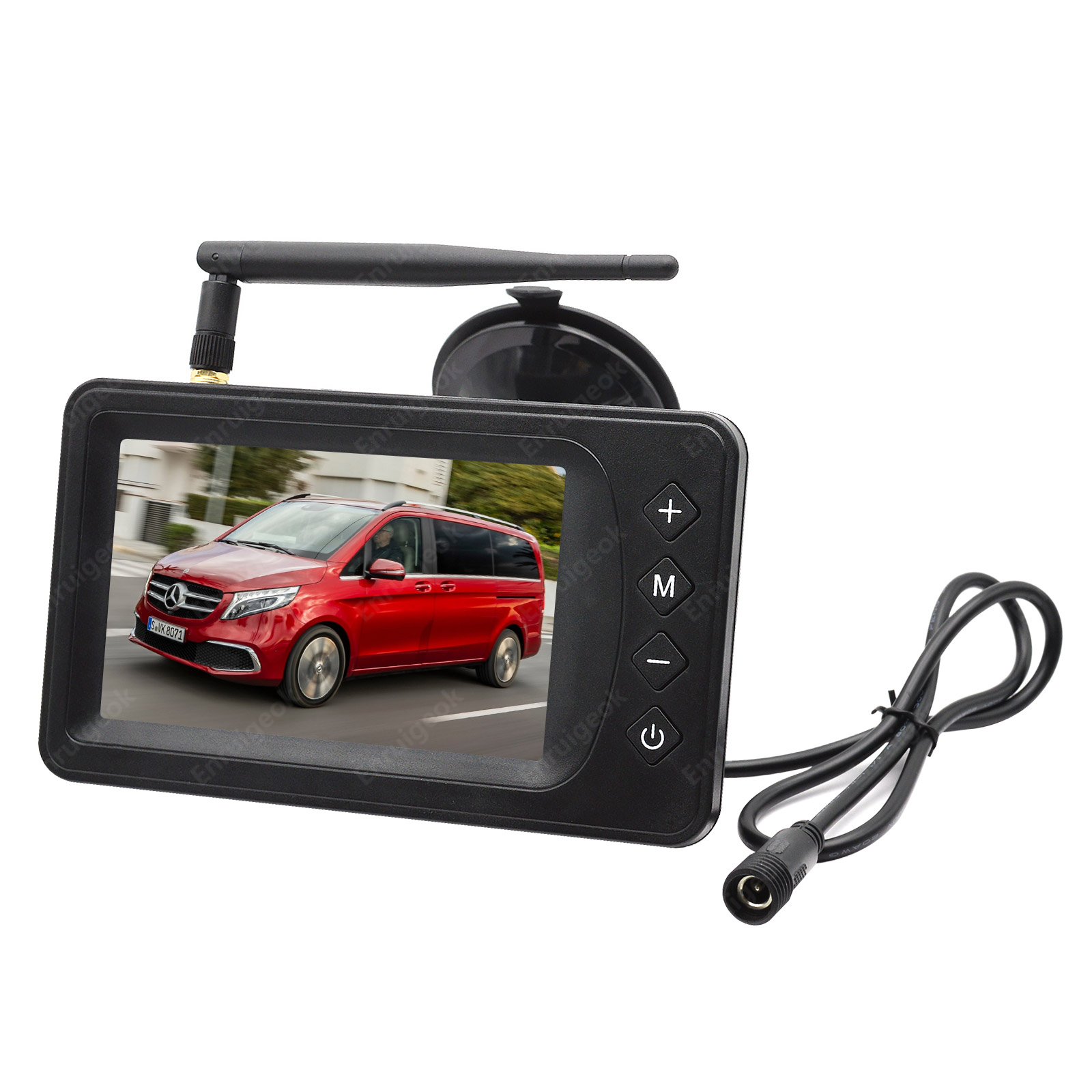

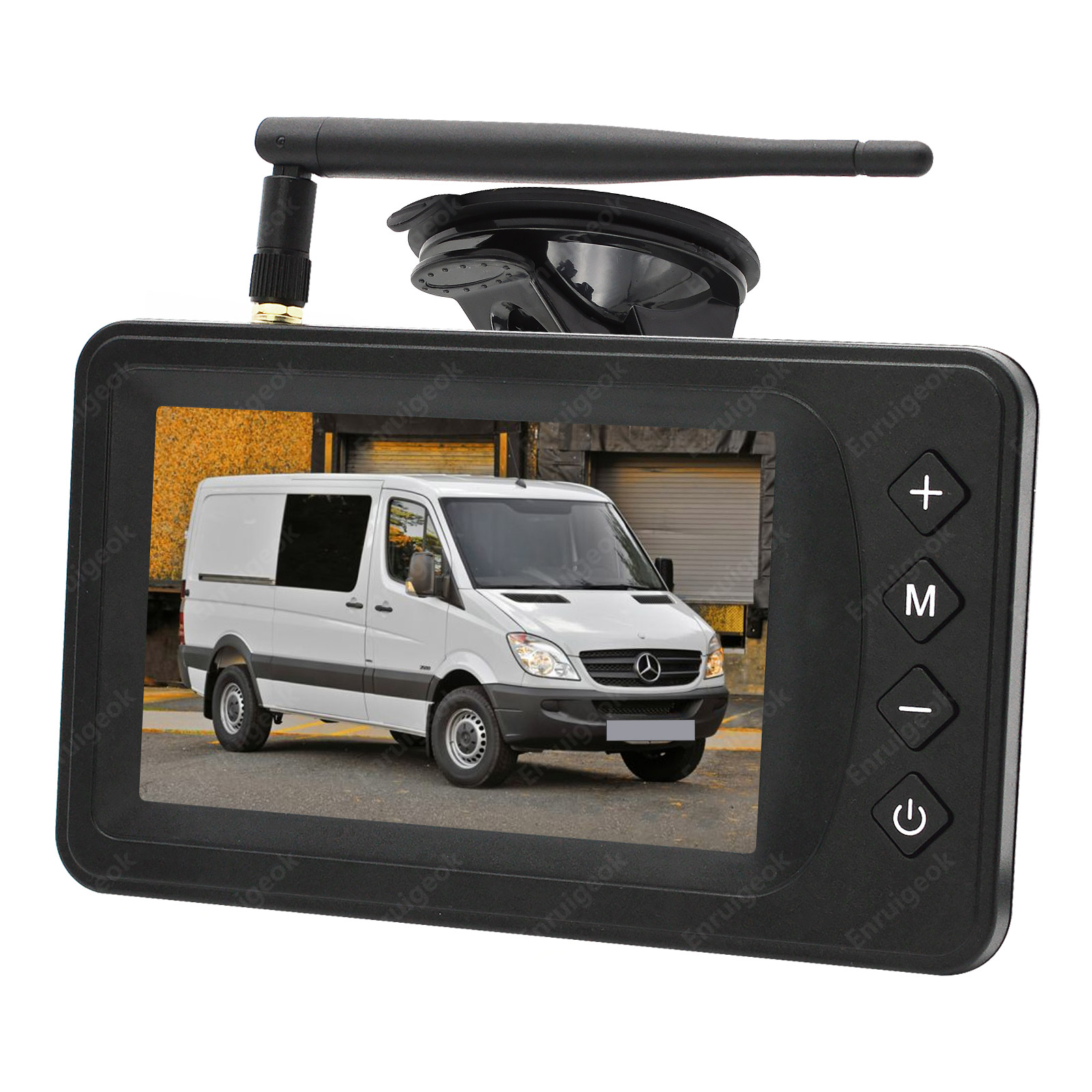

* The 5″ color IPS display monitor features 800×480 (RGB) resolution, making it compatible with the brake light rearview camera. With a 120-degree viewing angle, it delivers detailed information about your surroundings.
* Designed to withstand the elements, the camera boasts an IP68 rating, ensuring it is 100% waterproof.

Specifications:
Built-in 2.4G digital wireless receiver module
Power Supply: DC12~24V
Unobstructed Effective Range: 200m
Operation Frequency: 2.4G
Camera resolution: AHD 1080P
Horizontal view angle: 120°
Channel: 1 channel
Display Resolution: 800*480 IPS
Brightness(cd/m2): 500
Contrast ratio: 500: 1
Video System: PAL/NTSC(Video)
Rear watching: Image can be changed left, right, up and down
Operating temperature: -20℃~ +70℃

Camera Specifications:
Image sensor: 1/4″ CMOS
TV system: PAL/NTSC option
Waterproof rating: IP68
Viewing angle: 120°
Effective pixel: 733(H)x493(V)
Horizontal sync frequency: 15.625KHZ
Scanning system: 2:1 interface
Sync system: Internal
ACG: Auto
BLC: Auto
Resolution: 480TV Lines
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.1-0.5Lux / F = 1.2
Power supply: DC12V
Power: 5W
Operating temperature: -20℃ to +70℃

Package contents:
1 X Brake light camera
1 X 5” monitor
1 X Antenna
1 X Brake light power cable
2 X Power cable
1 X Windscreen Suction Cap
1 X Manual
