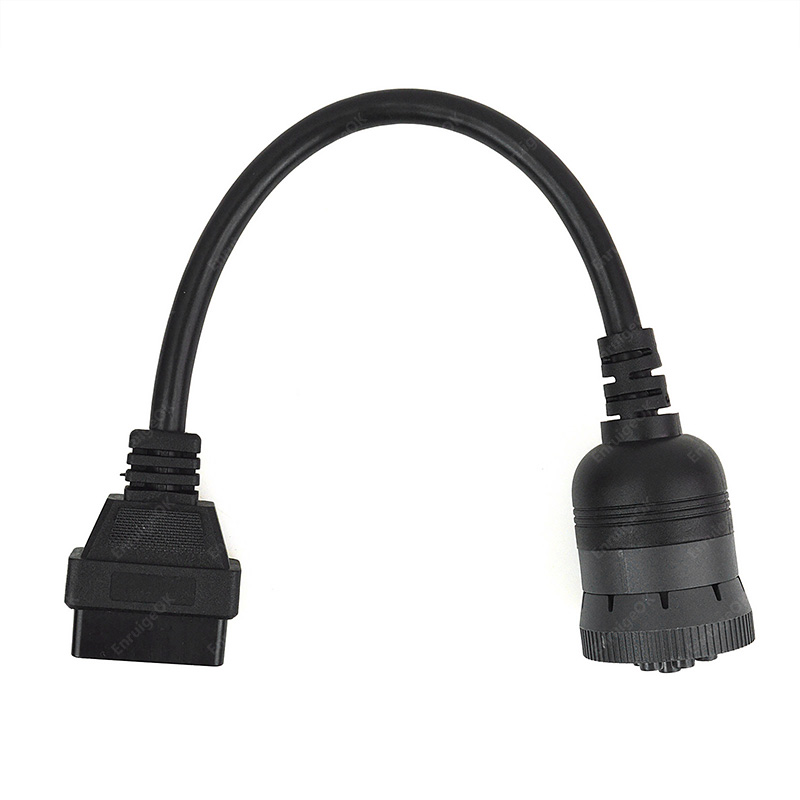

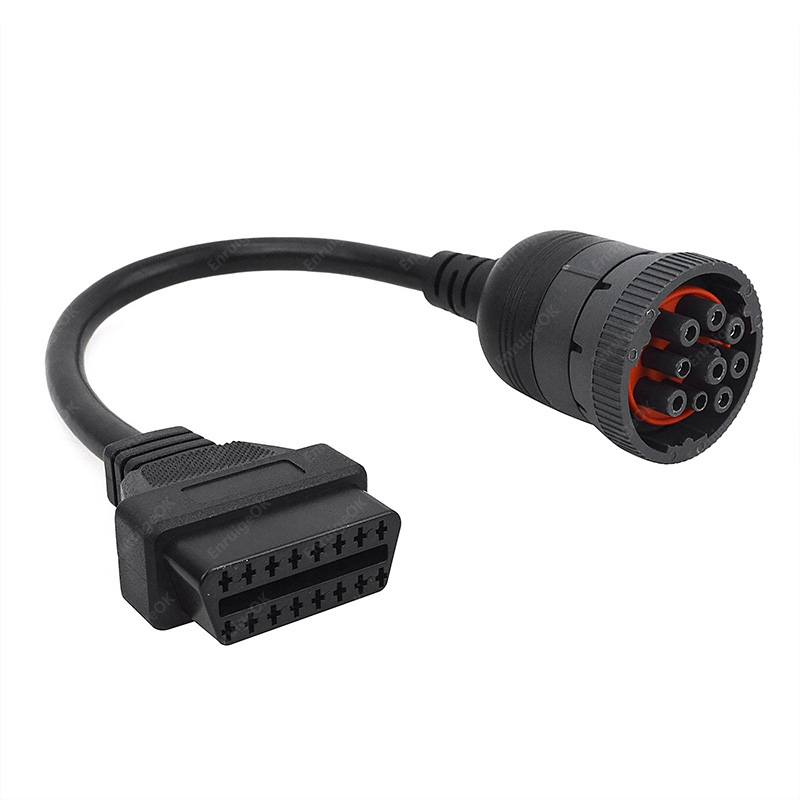

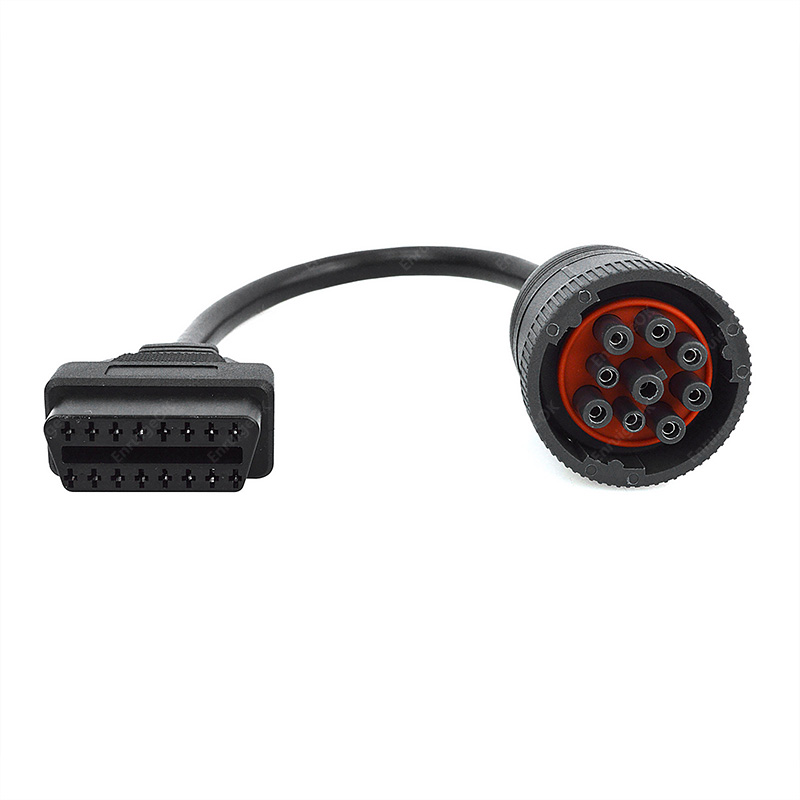

9Pin J1939 to 16Pin OBD2 OBDII Female Adapter Heavy Duty Truck Diagnostic Cable

Features:
*J1939 9Pin to OBD OBD2 OBDII.
*It has integrated the basic diagnostic functions of J1939 heavy duty truck standard communication protocols.
*J1939 is the vehicle bus recommended practice used for communication and diagnostics among vehicle components.

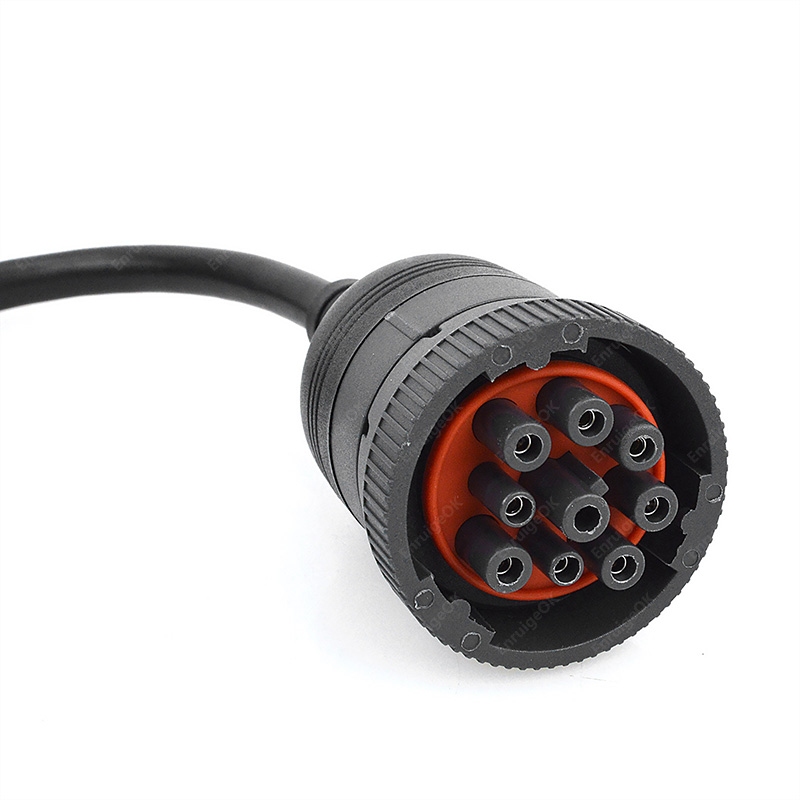

*Deutsch 9 pin female connector can now be found in a range of diesel-powered applications: vehicles (on-and off-road), marine propulsion, power generation and industrial pum ping.

描述

Specification:
J1939-9Pin to OBD OBD2 OBDII

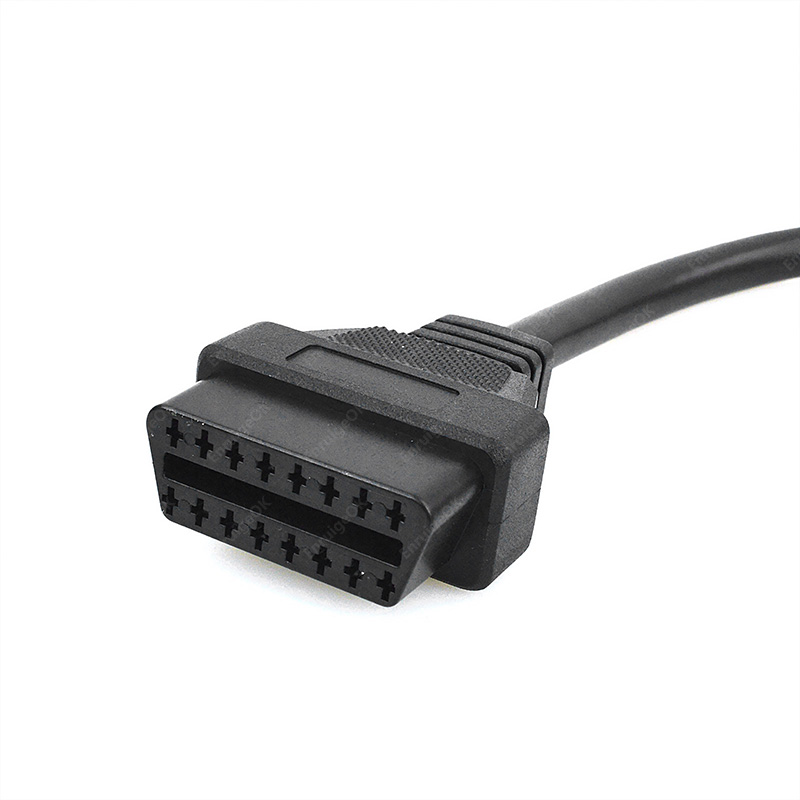

Connecting: OBD2 16pin female to J1939-9Pin
AWG: 26awg
Material: Plastic
Size: approx. 295 x 40 x 30mm

Pins Definition:
Pin A: Ground
Pin B: Power, 12V or 24V which depends on your trucks/vehicles output
Pin C: CAN1/J1939+
Pin D: CAN1/J1939-
Pin E: CAN1/J1939 Shield
Pin F: J1708/J1587 High
Pin G: J1708/J1587 Low
Pin H: Nullz
Pin I: Null which is for Port J on trucks/vehicles’ socket

Application:
J1939 CAN BUS diagnostic unit (for trucks);
J1939 body builder CAN bus monitor (for trucks);
J1939 interface industrial engine display unit;
ISOBUS-control devices;
CAN bus Universal Controller;
CAN gateway and bus simulator.

Package included:
1×Female 16pin to J1939 9pin Tuck Cable
