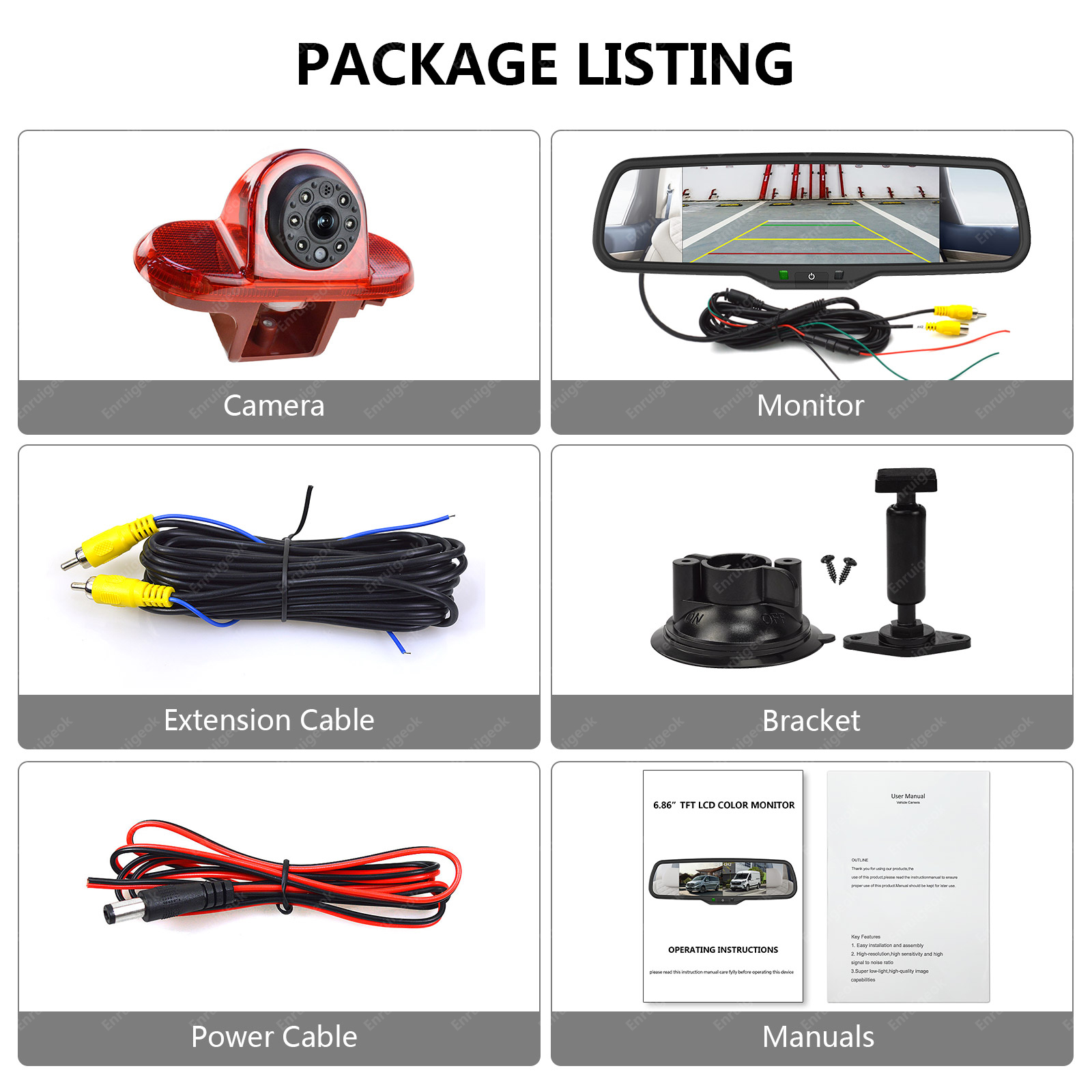

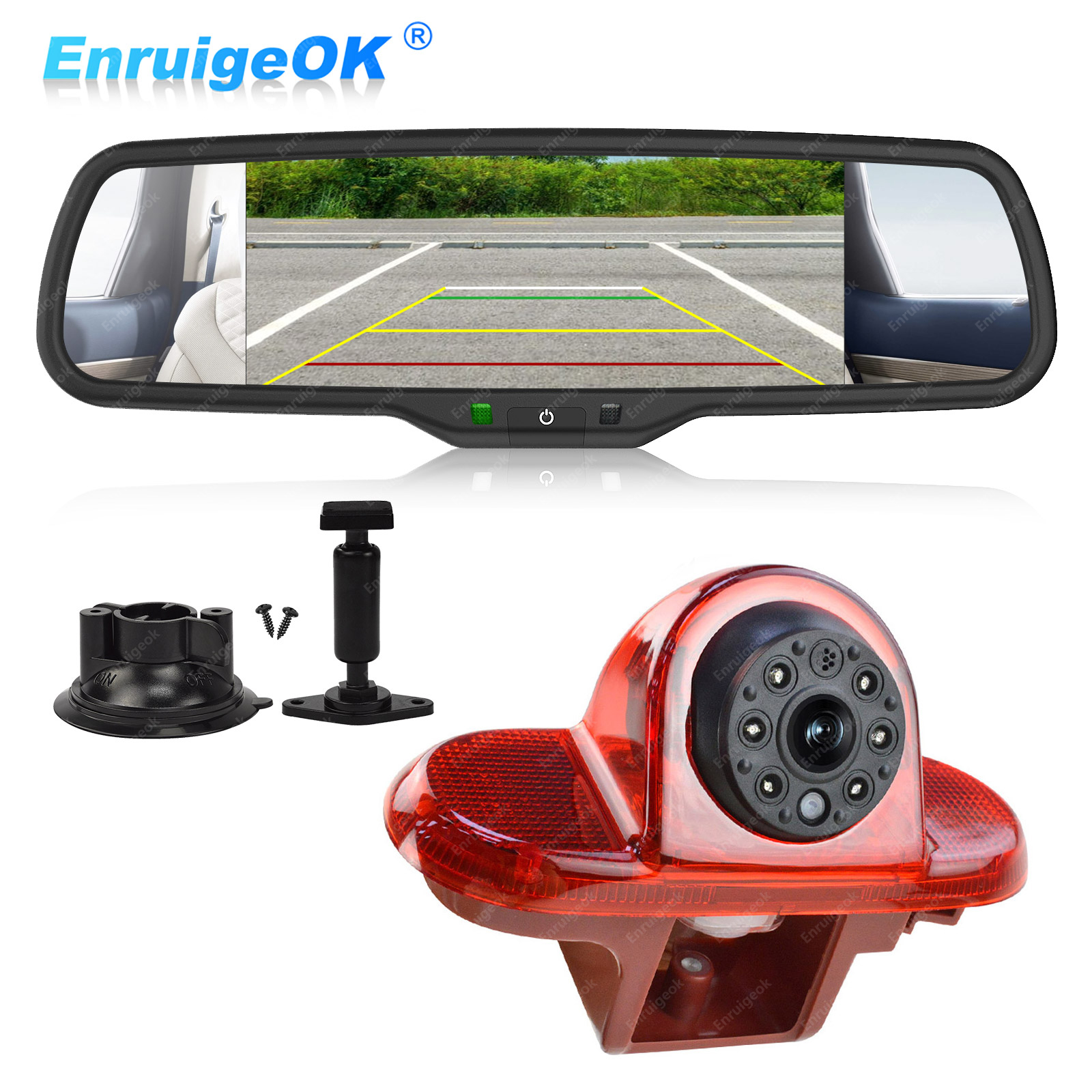

6.86″ Mirror Monitor & Renault Trafic Reversing Camera Kit

Camera Compatibility:

Renault Trafic II Phase1 (2001-2005)
Renault Trafic II Phase2 (2006-2010)
Renault Trafic II Phase3 (2011-2014)
Vauxhall/ Ople Vivaro A phase 1 (2001-2005)
Vauxhall/ Ople Vivaro A phase 2 (2006-2010)
Vauxhall/ Ople Vivaro A phase 3 (2011-2014)
Nissan Primastar (phase 2) (2006-2010)
Nissan Primastar (phase 3) (2011-2014)
Vauxhall/Opel Combo (2001-2011)

Camera Specifications:

Image sensor: 1/3″ CMOS
Effective pixel: 1920(H)x720(V)
Resolution: AHD 720P
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.0Lux(IR LED ON)
Power: DC 12V
Operating temperature: -20℃ to +70℃

Monitor Specifications:

Screen: 6.86 inch
Resolution: 1280x(RGB)x480 IPS
TV System: PAL/NTSC auto
Screen ratio 16:9/4:3 adjustable
Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing, Long press the power button to turn off the display.
Power Supply: DC 12V-24V
Power consumption: 6W
Operation temperature: -20℃ ~ +60℃
Storage temperature: -20℃ ~ +60℃
