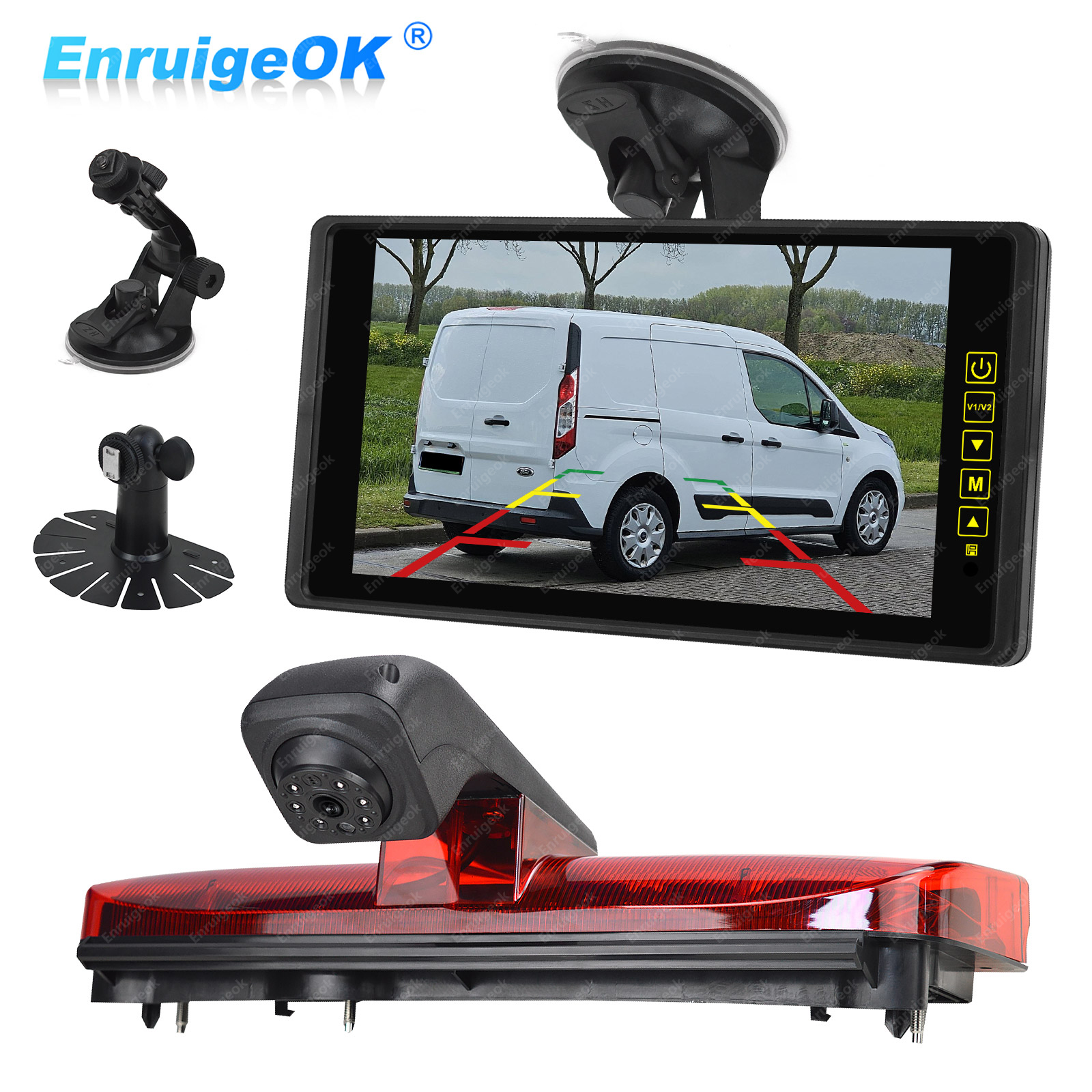

9″ Monitor & Ford Transit Connect Reversing Camera Kit

Camera Compatibility:

Ford Transit Connect [MK2 Inc Facelift] (2014–2023)

Camera Specifications:

Image sensor: 1/4″ CMOS
Effective pixel: 733(H)x493(V)
TV Line: 480TV Lines
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.0Lux(IR LED ON)
Power: DC 12V
Operating temperature: -20℃ to +70℃

Monitor Specifications:

*Screen: 9 inch
*Resolution: 800x(RGB)x480
*TV System: PAL/NTSC auto
*Screen ratio 16:9/4:3 adjustable
*Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input.
*Power Supply: DC 9V-35V
*Power consumption: 6W
*Rear watching: Image can be changed left and right
*Operate mode: The touch key operation and remote control
*Remote control: a CR2025 button battery (battery not included)
