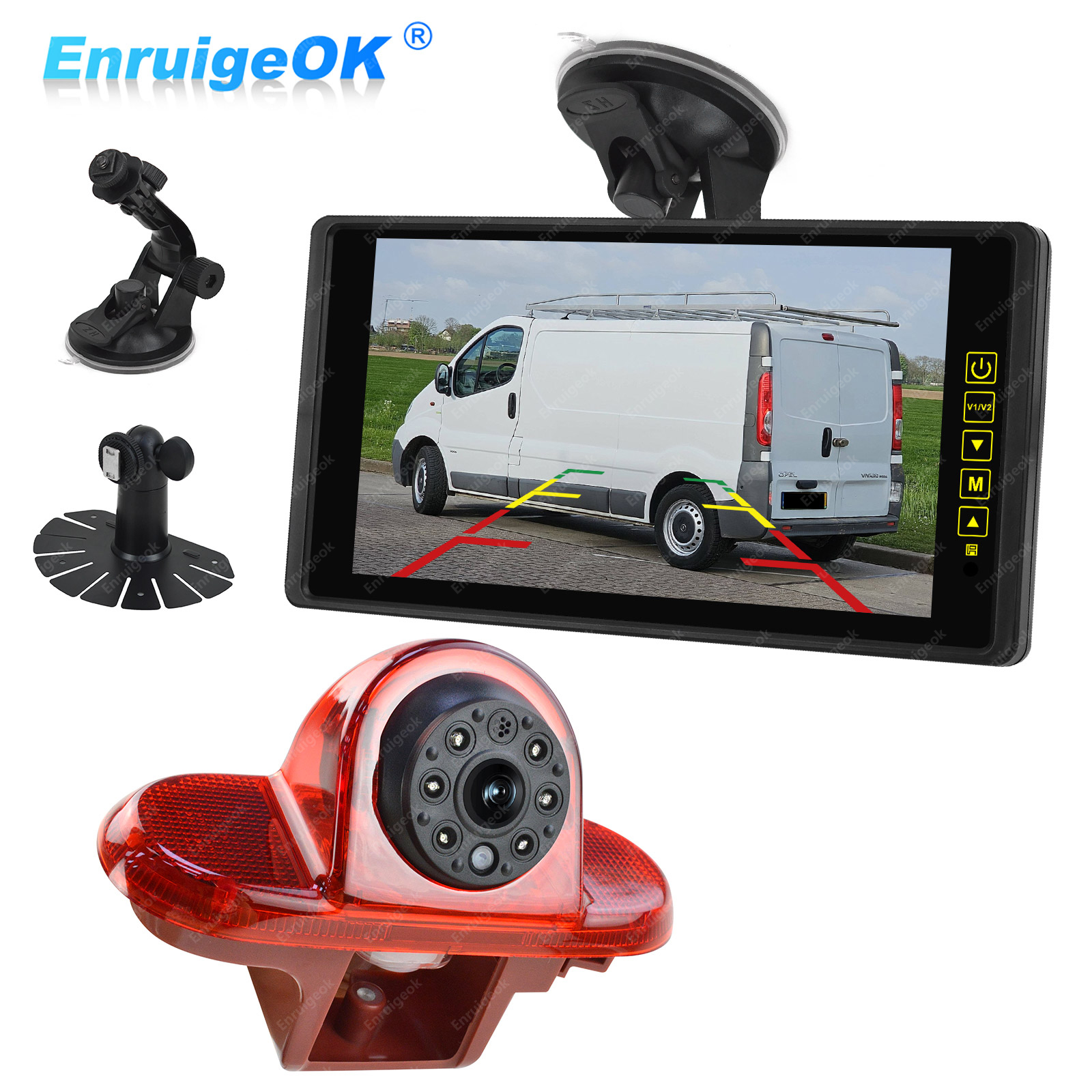

9″ Monitor & Nissan Primastar Reversing Camera Kit

Camera Compatibility:

Renault Trafic II Phase1 (2001-2005)
Renault Trafic II Phase2 (2006-2010)
Renault Trafic II Phase3 (2011-2014)
Vauxhall/ Ople Vivaro A phase 1 (2001-2005)
Vauxhall/ Ople Vivaro A phase 2 (2006-2010)
Vauxhall/ Ople Vivaro A phase 3 (2011-2014)
Nissan Primastar (phase 2) (2006-2010)
Nissan Primastar (phase 3) (2011-2014)
Vauxhall/Opel Combo (2001-2011)

Camera Specifications:

Image sensor: 1/4″ CMOS
Effective pixel: 733(H)x493(V)
TV Line: 480TV Lines
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.0Lux(IR LED ON)
Power: DC 12V
Operating temperature: -20℃ to +70℃

Monitor Specifications:

*Screen: 9 inch
*Resolution: 800x(RGB)x480
*TV System: PAL/NTSC auto
*Screen ratio 16:9/4:3 adjustable
*Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input.
*Power Supply: DC 9V-35V
*Power consumption: 6W
*Rear watching: Image can be changed left and right
*Operate mode: The touch key operation and remote control
*Remote control: a CR2025 button battery (battery not included)
