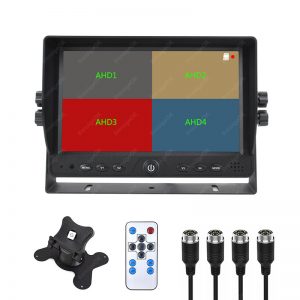

ERG-9001-4AV/AHD
9 Inch Automotive Display
Featuring a high-brightness IPS panel with two resolution options (800×480 and 1024×600), this 9-inch car monitor delivers crisp, clear visuals with excellent viewing angles for reliable performance in any lighting condition.
Built with an internal wide-voltage design and automotive-grade wiring, it ensures stable operation across varying vehicle electrical systems. The product holds CE, FCC, RoHS, and E-MARK certifications, and is manufactured under the GB/T 19001-2016 / ISO 9001:2015 quality management system.
High-brightness IPS screen for superior visibility
Dual resolution options to suit different needs
Wide-voltage compatibility for vehicle integration
Automotive-grade components and cabling
Fully certified for global markets (CE/FCC/RoHS/E-MARK)
ISO 9001:2015 quality assured

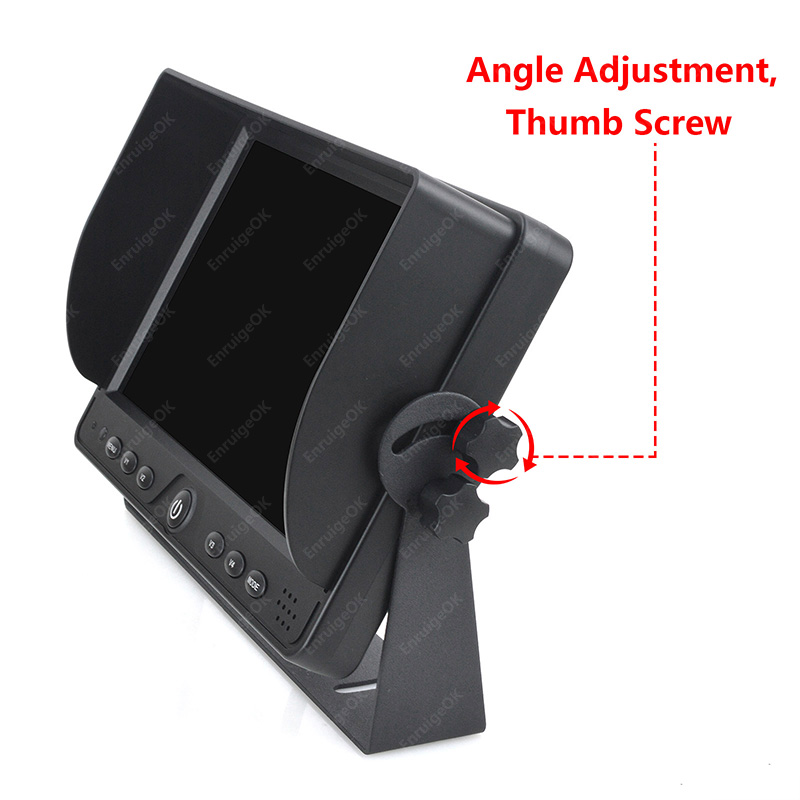

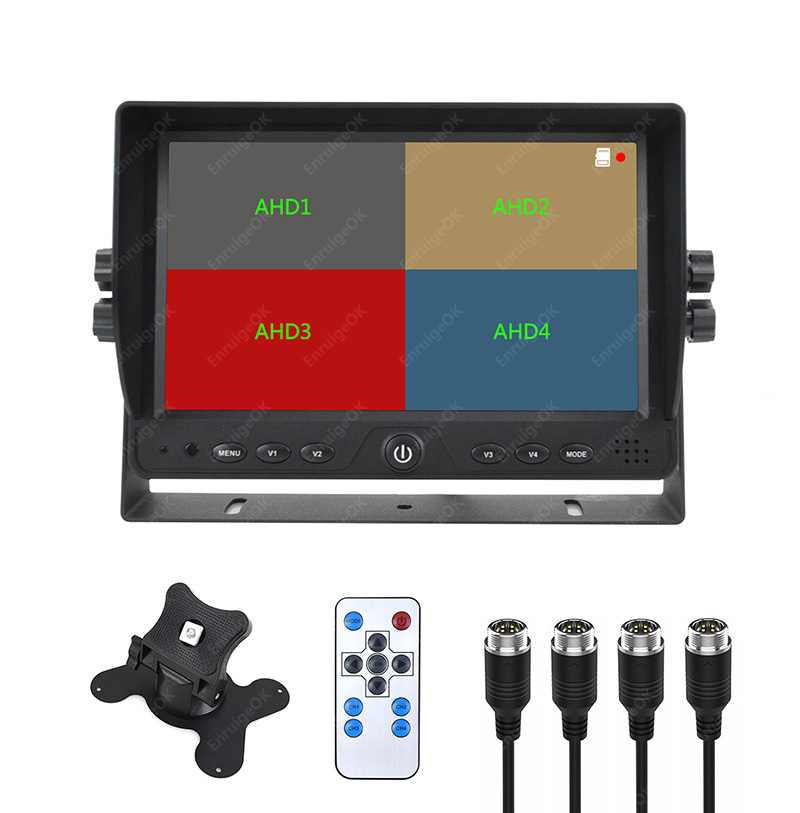

* 4 video inputs, auto switch to V4 when reversing. Support adjusting the screen angle.
* Automatic identify input signal, no unified format cameras can also be used.
* Rear watching, image can be changed left and right, up and down. Panoramic parking system. You can see 4 direction scenery outside the car.
* Supports car DVD, VCR, camera, GPS and other video equipment. Apply for heavy duty trucks, harvester, excavator, etc.

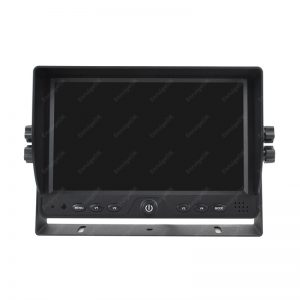

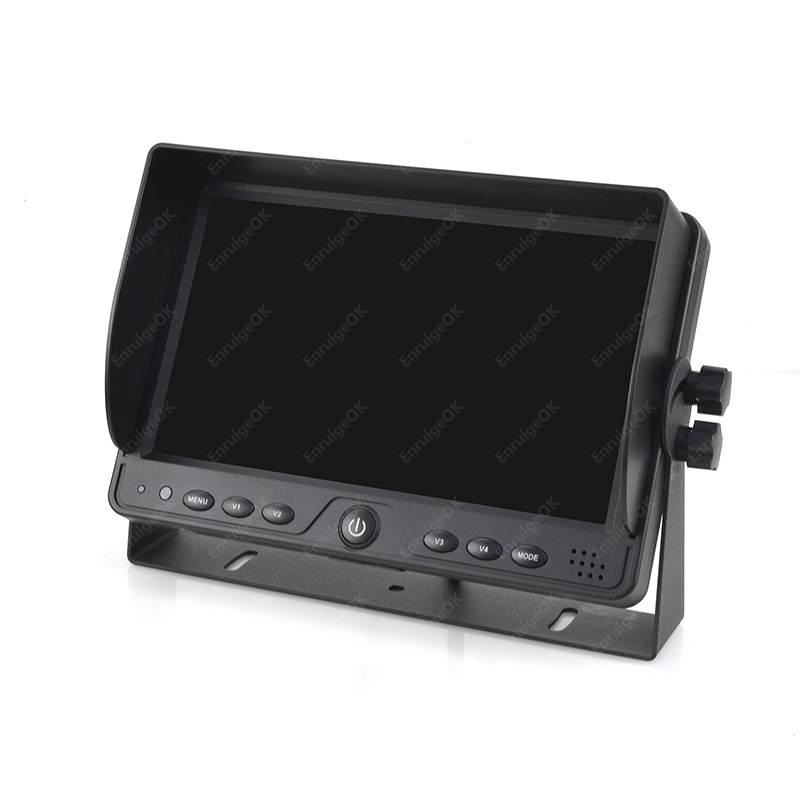

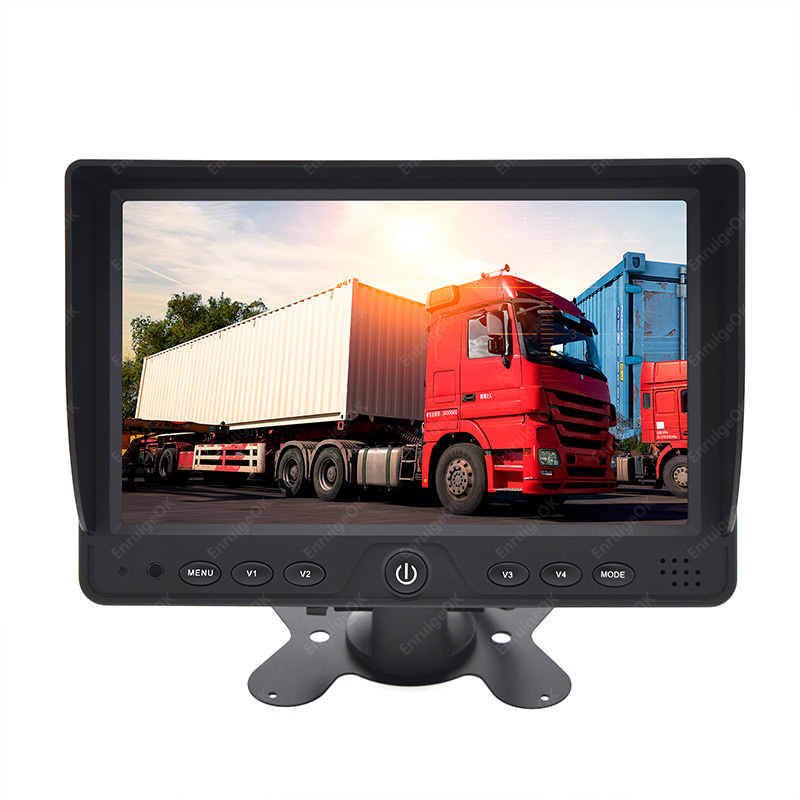

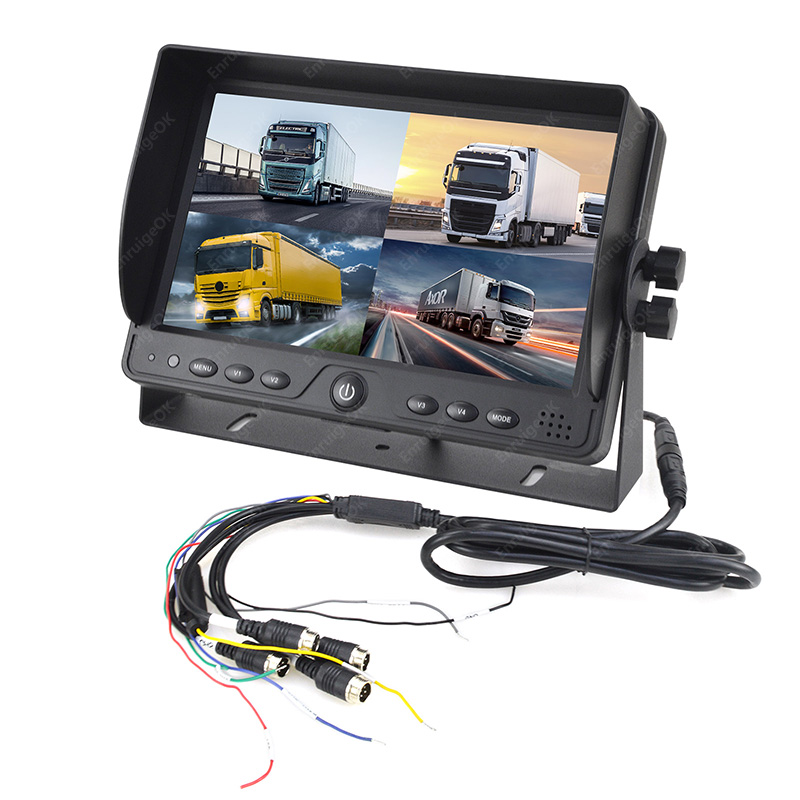

9 Inch TFT-LCD Quad Screen Monitor
Aspect Ratio: 16: 9/4: 3
Resolution: 800*RGB.*480
System: PAL/NTSC Auto switching
Contrast: 500:1
Brightness: 400CD

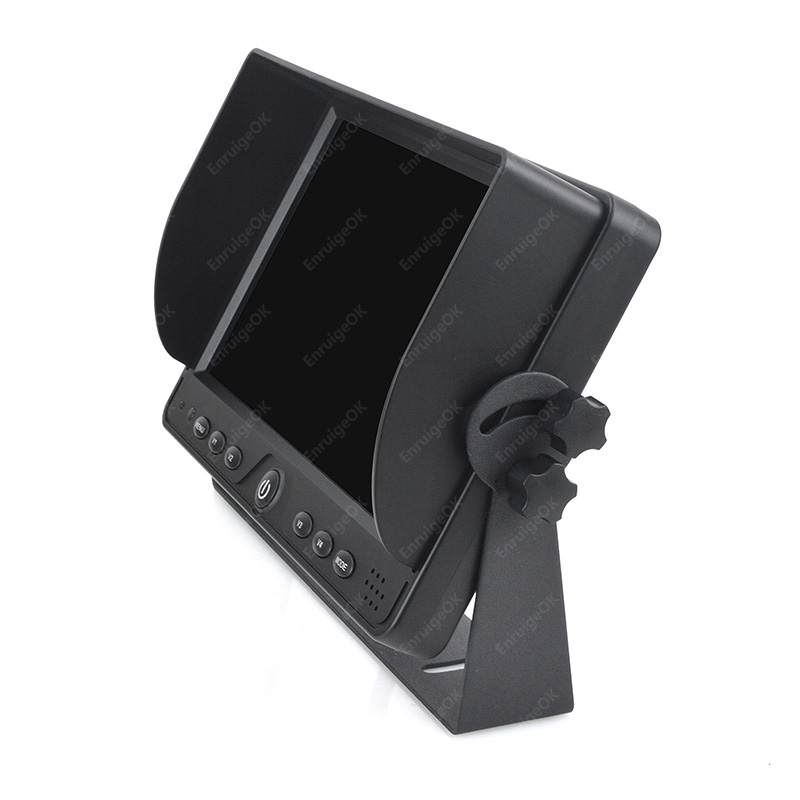

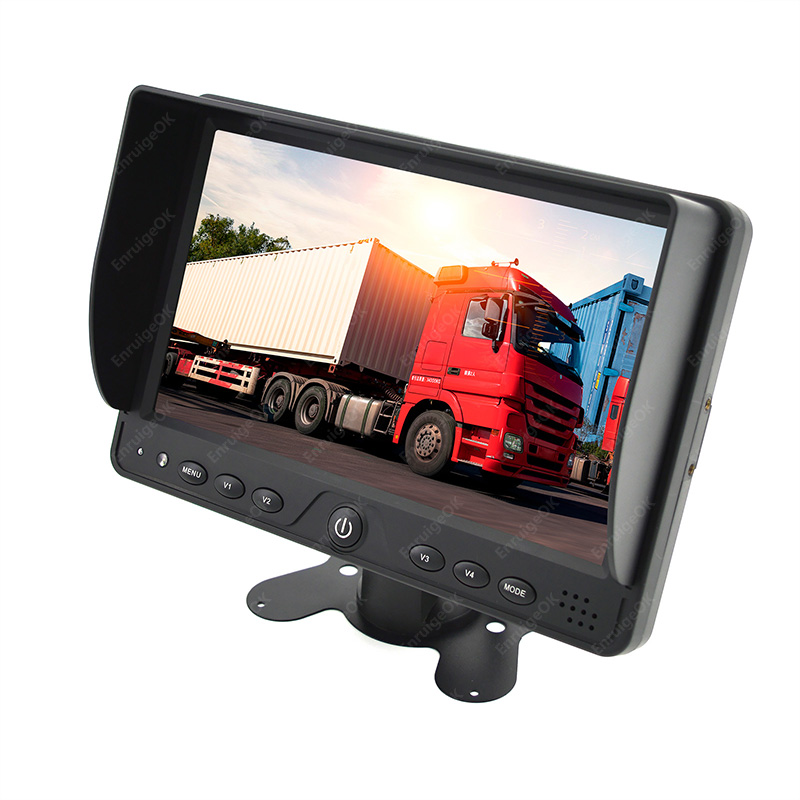

With sunshade design
4CH CVBS signal inputs
Working Temperature: -20℃- +60o℃
Working Humidity: 85%RH
Power Supply: DC 9-35V
OSD Control Display menu, Brightness, color, contrast adjustable
Power Consumption: <9W

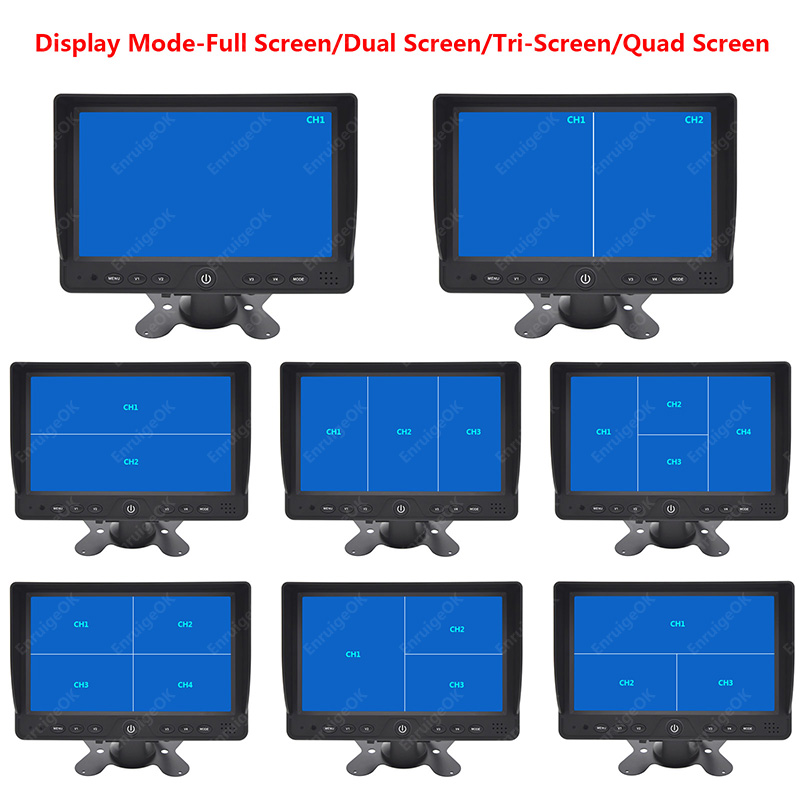

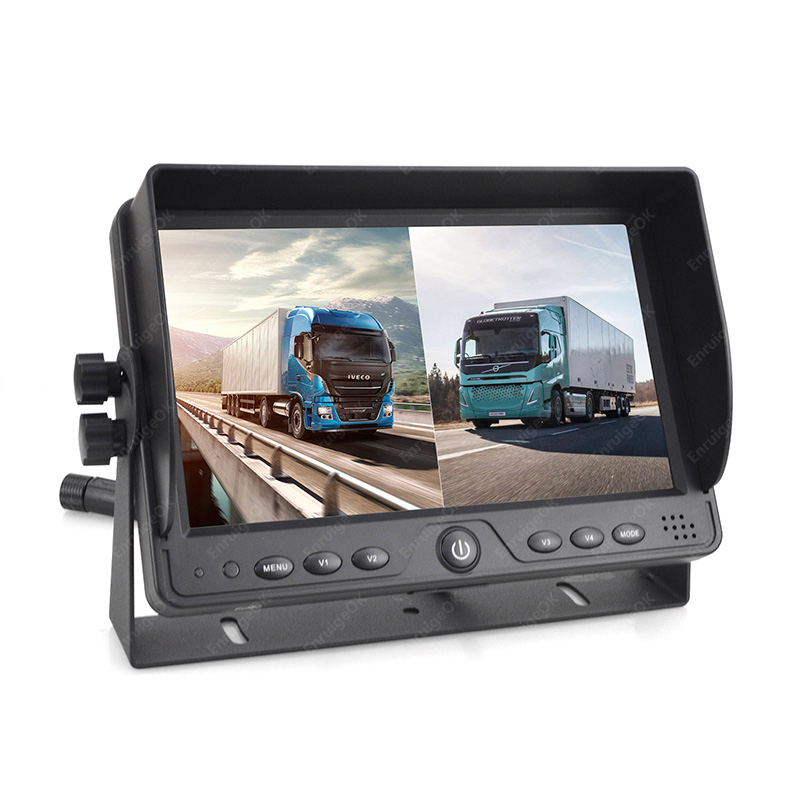

Image Display: Multiple image display switchable
Trigger Control: 4 channel reversing trigger control, with parking guide line function
Language: English/Simplified Chinese/Traditional Chinese/French/Russian/Germany, etc.

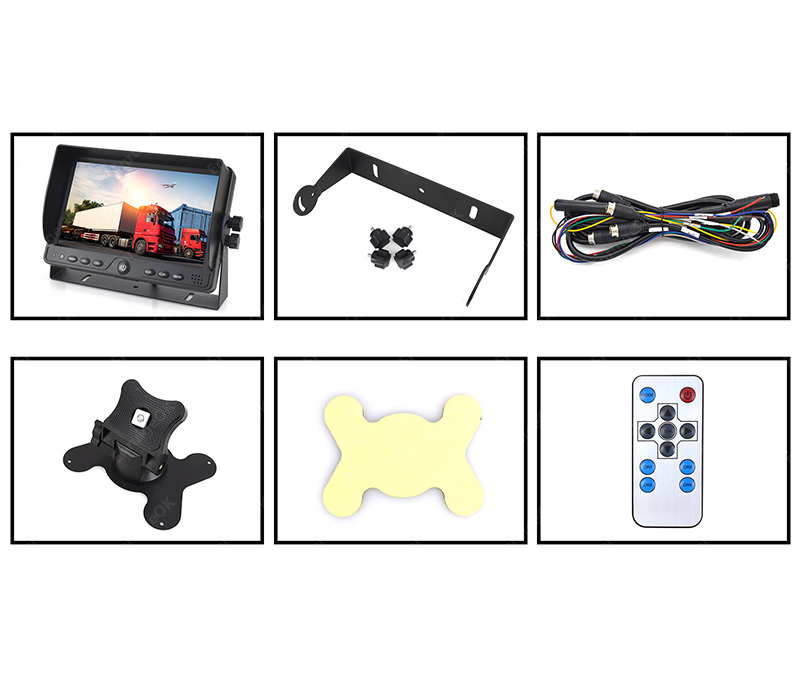

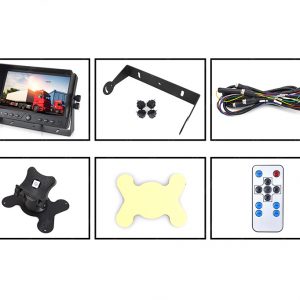

Package Included:
1 x 9″ Quad Split Monitor

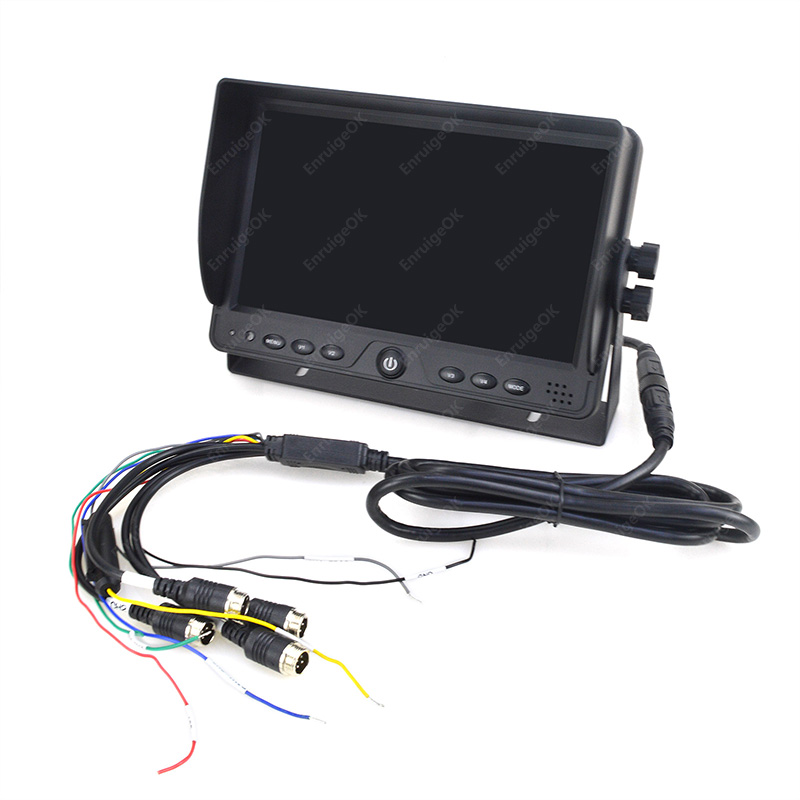

1 x Power Video Cable
1 x U-shaped Bracket
1 x Base Bracket
1 x Detachable SunShade
1 x Remote Controller (Battery Not Included)
1 x User Manual
1 x Other Accessories
